38-0179 - Bobbed 3.2 Gallon Gas Tank Kit
$543.21
SKU 38-0179

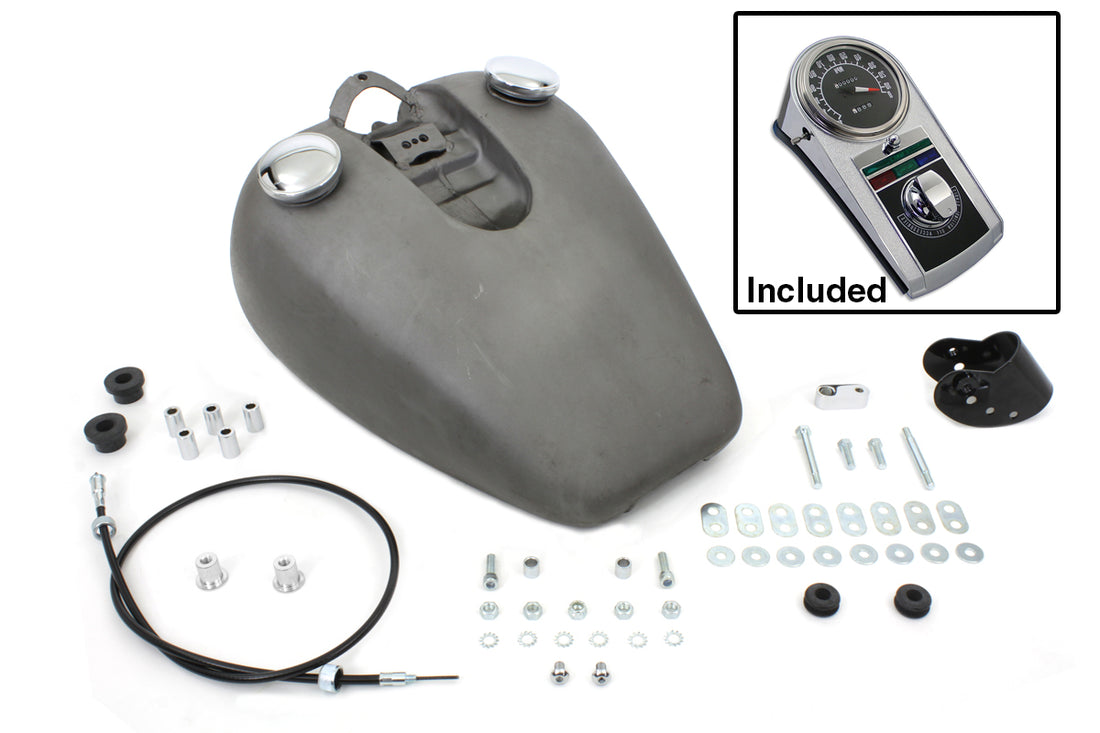

Gas tank has a left side petcock opening and a fuel capacity of 3.2 gallons. Tank kit features a chrome cast dash kit with a 2:1 tombstone style speedometer with a black face chrome bung style late caps and all necessary mounting hardware for installation. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock.
FITS
- 1982-1994 XL
MEASUREMENTS
- Top Length: 18-1/2 inches
- Bottom Length: 16-1/2 inches
- Rear Width: 7 inches
- Front Width: 13-1/2 inches
- Rear Height: 2 inches
- Front Height: 8-1/2 inches
- Front Tunnel Height: 8 inches
- Rear Tunnel Height: 2 inches
- Tunnel Length: 17 inches
ACCESSORIES
REPLACEMENT
TECHNICAL SPECIFICATIONS
- Suggested to use with #41-0113 Kreem Gas Tank Combo Kit.
