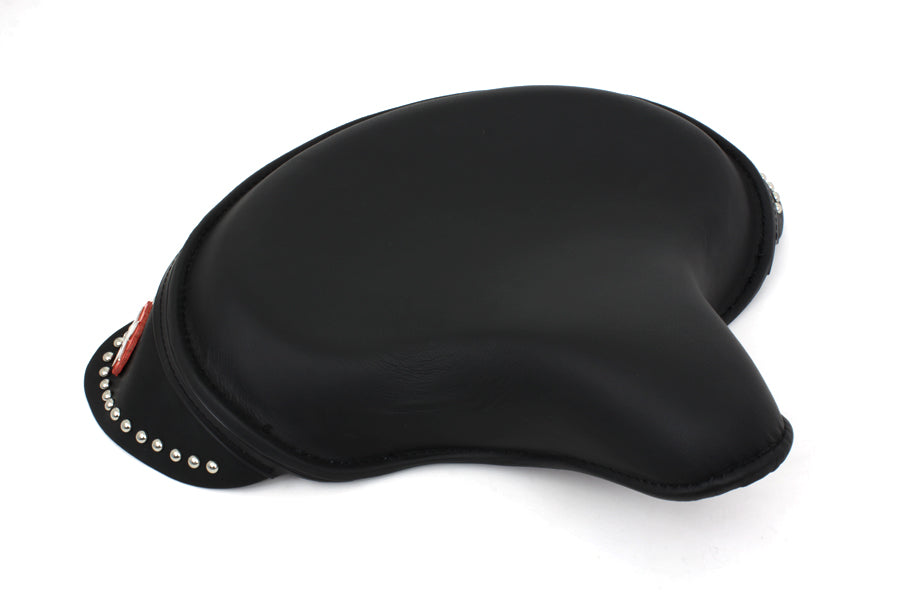

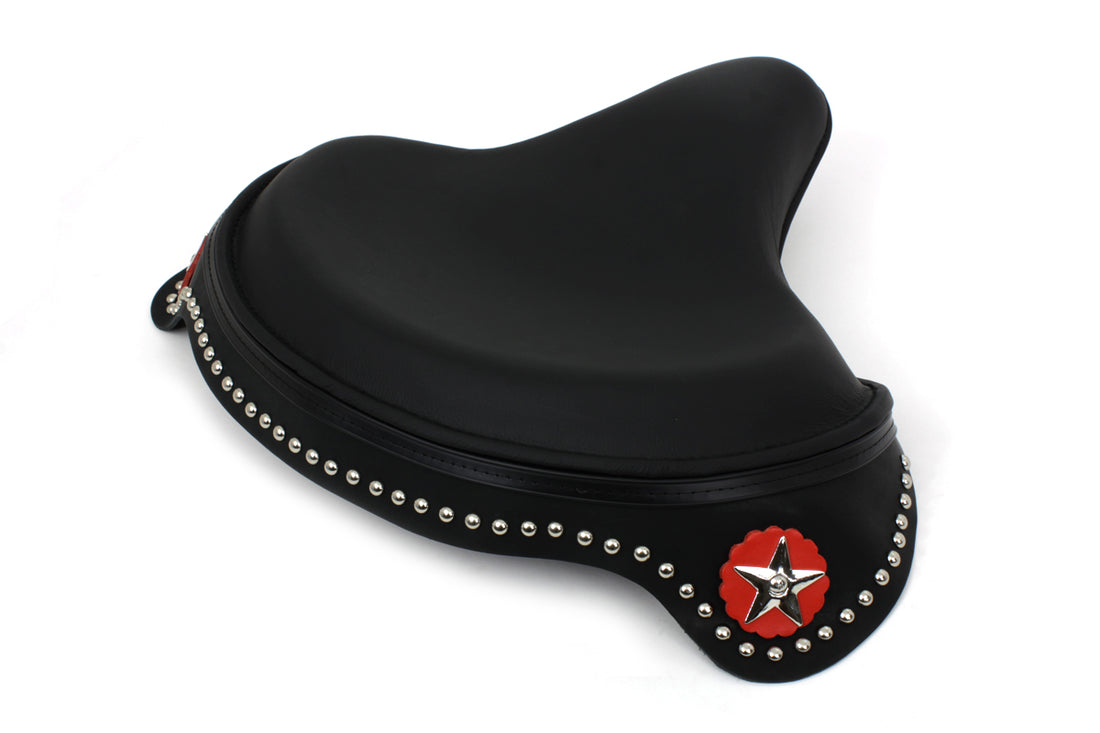

47-0946 - Black Leather Solo Seat with Skirt

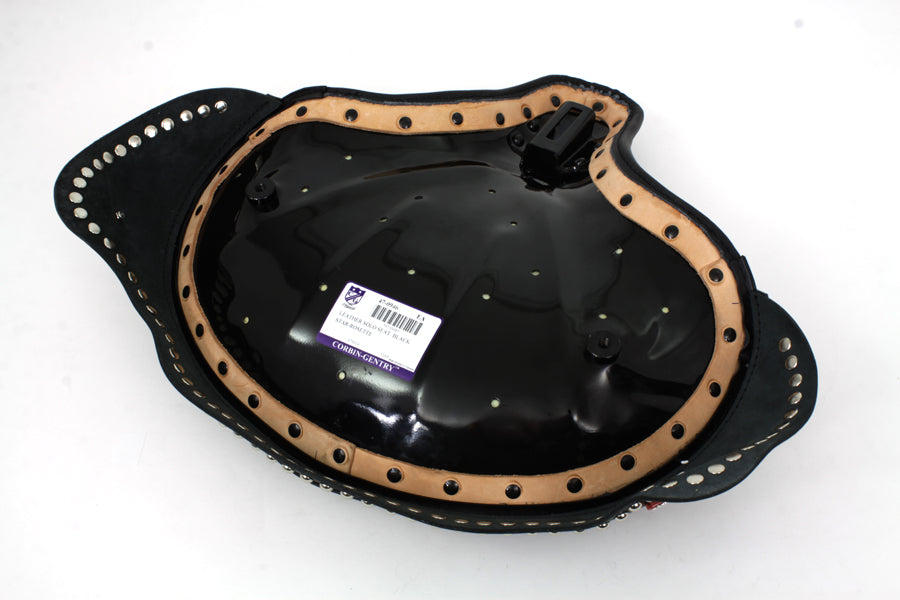

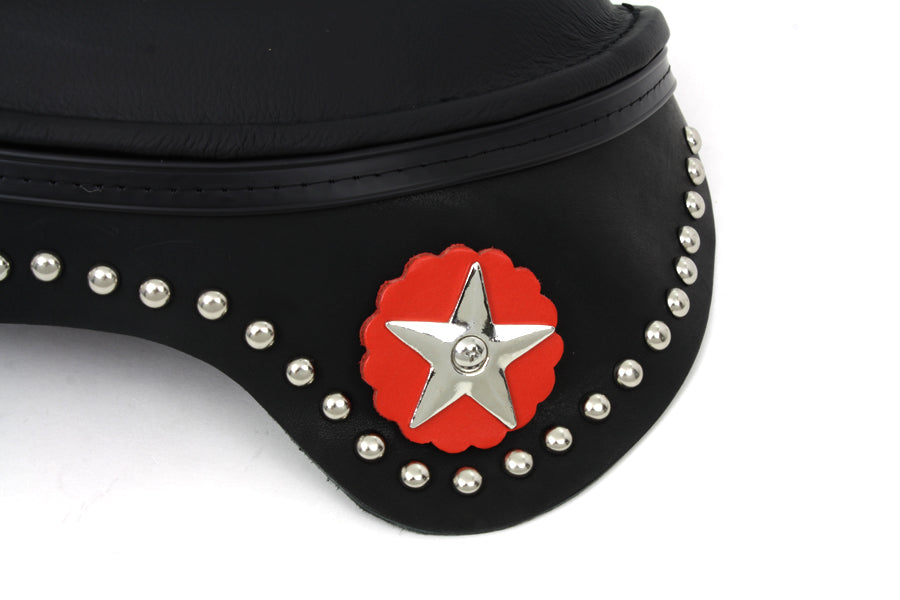

Solo black leather seat has a black skirt with orange rosettes and nickel spots. Seat is constructed with a molded foam pad on a steel formed and ribbed baseplate with brackets riveted. It has rolled sewn edges. Accepts stock type T bar mount systems which must be ordered separately. Order mount hardware kit separately. the distance from the top rear of the seat to the bottom of the rear skirt measures 3-3/4 inch. The disntace between the rear bolt holes measures 10-7/8 inch with a 5/16 inch-24 NF thread. The top to center is 10-3/8 inch on mounts. The front bolt holes to the rear measures 7-3/8 inch. The front bracket is 1-7/8 inch long with a 25/64 inch width. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Seat Thickness: 2-7/8 inches
• Front Width: 4-1/2 inches
• Rear Skirt Length: 2 inches
• Widest Seat Width: 17-1/4 inches
• Skirt Side Length: 4-3/8 inches
• Seat Width w/Skirt: 22 inches
