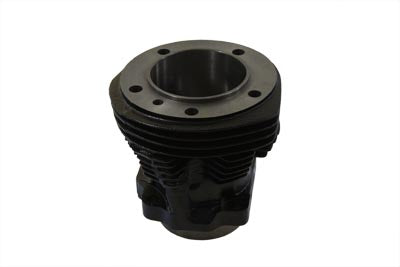

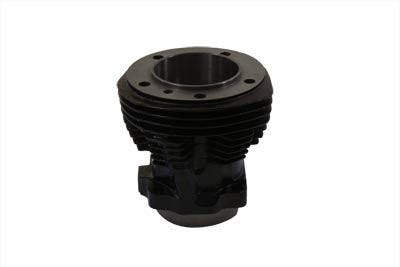

11-0496 - 80 Shovelhead Front Cylinder

Front cylinder fits Shovelhead 1979-1985 80 inch models. Cylinders are for stock bore stock stroke and compression. Sold each. Cylinders are 88.86mm bore with + or - .005mm range of tolerance and must be honed to standard size for proper fit. Pistons are not included. May require the use of a cylinder base nut set available separately. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.

MEASUREMENTS

• Bore Size: 3-7/16 inches
• Bottom Flange I.D.: 3-5/8 inches
