11-2612
80  Shovelhead Cylinder Piston Kit
80  Shovelhead Cylinder Piston Kit
80  Shovelhead Cylinder Piston Kit
80  Shovelhead Cylinder Piston Kit

80 Shovelhead Cylinder Piston Kit

$523.00 Sale Save

SKU11-2612

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

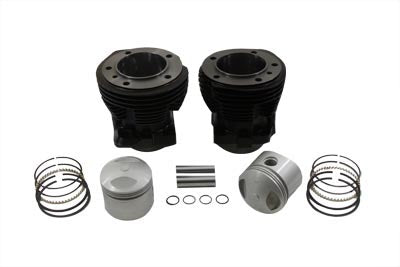

GME 80 Shovelhead cylinder and piston with genuine cast cylinders prefitted with 8:1 compression cast pistons and rings.
Set of two. For stock stroke only. They are ready to run and will require break-in. Please refer to proper shop manual for suggestions on break-in. For 1979-1985 Shovelheads. Order head base gasket separately. May require the use of a cylinder base nut set available separately. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.

Fits:
FL 1979-1984
FLT 1979-1983
Fx 1979-1984
FXR 1982-1983

UOM: KIT
Country Of Origin: TAIWAN
Suggested Items: 11-0226 - Replica 80 Overhead Valve Piston Set Standard Size

Accessory Items:
16-0622 - Ring-O-Matic Ring Compressor Tool Kit
16-1164 - Piston Pin Support Plate
16-0107 - Replica Cylinder Base Wrench Tool

Tech Notes: Suggested to use with #8601-8 Hi-Torque Cylinder Base Nut Set.
Measurement: Height of the Piston: 3-1/4 inches
