45-0110
45-0110 - 750 XR Rear Wheel Hub Chrome by V-Twin

V-Twin

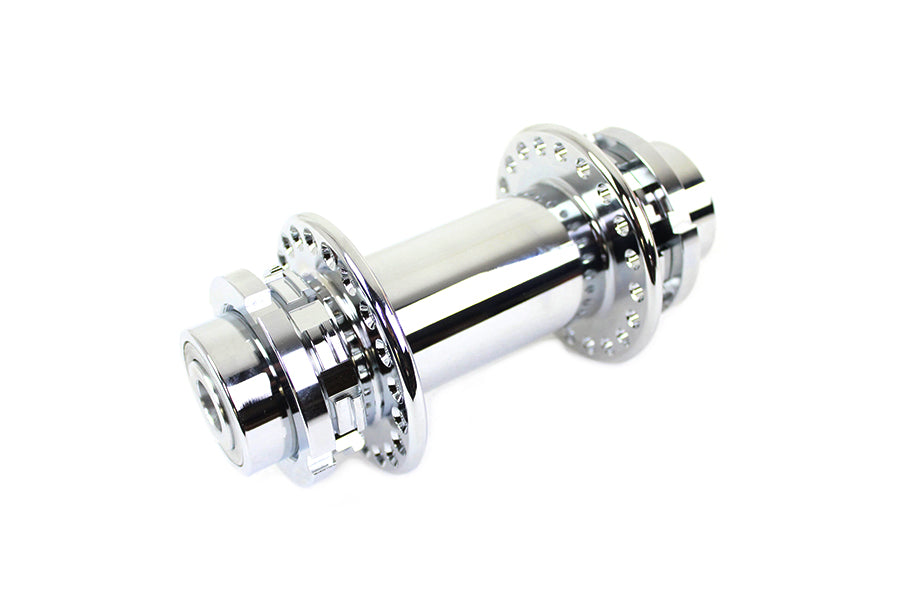

45-0110 - 750 XR Rear Wheel Hub Chrome

$188.00 Sale • Save

SKU 45-0110

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

750 XR rear wheel hub is chrome plated and includes 2 nuts. For 40 spoke hole rims. Features knock off threaded end for inchquick change inch rear sprockets. Includes 11/16 bearings to fit stock sportster axles that are pre 1979 models and one chrome lock nut. Accepts 11/16 inch axle shaft and 6-8 gauge spokes. Accepts 38 tooth splined rear sprocket 49 tooth splined engine sprocket and 51 tooth splined engine sprocket. *NOTE: Alloy splined adapter is for sprocket and disc mounting. Disc mounting is a very close fit and should be tapped with rubber mallet - being careful not to damage splines. Order additional set of XR 750 hub lock nut separately.

FITS
  • 1957-1984 XL

MEASUREMENTS
  • Hub Length: 7-1/8 inches
  • Center to Center: 1/2 inches
ACCESSORIES
  • 19-0144 - 750 XL Rear Sprocket 51 Tooth
  • 16-0467 - 750 XR Lock Nut Tool Zinc Plated
  • 45-0115 - 750 XR Rear Sprocket Adapter
  • 45-0107 - 750 XR Rear Wheel Hub Alloy
TECHNICAL SPECIFICATIONS
  • Suggested to use with #19-0168 38 Tooth Splined Rear Sprocket
  • Suggested to use with #19-0172 49 Tooth Splined Rear Sprocket.
  • Suggested to use with #19-0173 51 Tooth Splined Rear Sprocket.
  • Suggested to use with #44-0482 XR 750 Rear Hub Lock Nut Set Zinc.
  • Suggested to use with #45-0115 750 XL Rear Sprocket Adapter.
