32-1651 - 45  WR Idler Gear Stud Spindle

32-1651 - 45 WR Idler Gear Stud Spindle

$26.00 Sale Save


Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

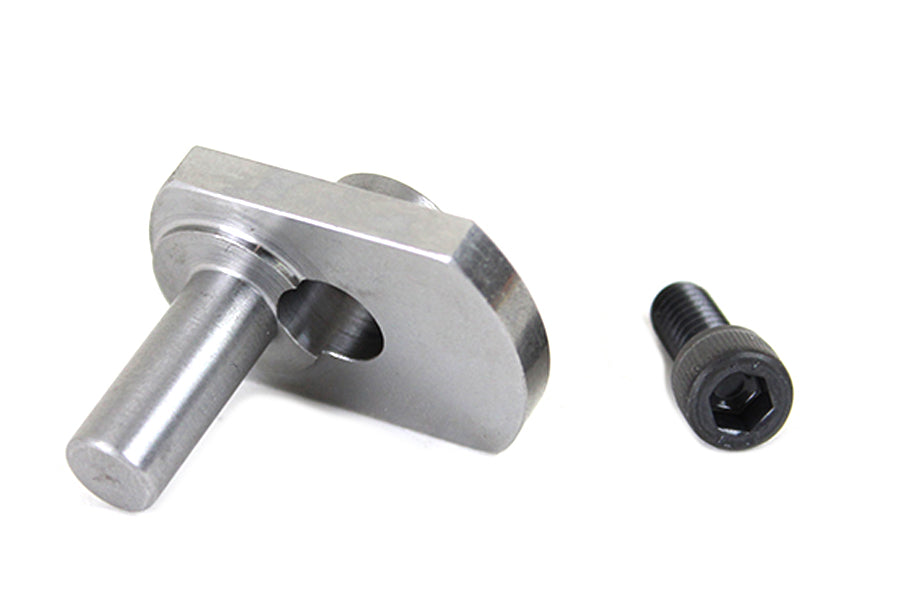

45 WR magneto idler gear stud spindle for forward mount Burkhardt magnetos which relocates the idler gear.
The shaft diameter is 9mm for bearing. Bearing required is included with the idler gear. *NOTE: Must order the gear separately. **NOTE: Check the height of the idler gear when installed in idler gear position milling will be required to lower stud for correct alignment. The idler gear spindle stud/tab must be stabilized so it does not rotate.

G 1937-1973
W 1937-1952

Country Of Origin: TAIWAN

Accessory Items:
32-1491 - XR/WR Magneto Adapter Plate
32-1256 - WR Forward Magneto Tapered Drive Gear
32-1570 - XR/WR Inner Magneto Mount Plate
10-1299 - XR/WR Magneto Idler Gear with Holes

Tech Notes: Suggested to use with #10-1184 WR Magneto Drive Gear.
