40-0964 - 45 WL Raw Side Fill Wrap Around Oil Tank

40-0964 - 45 WL Raw Side Fill Wrap Around Oil Tank

$213.00 Sale Save


Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

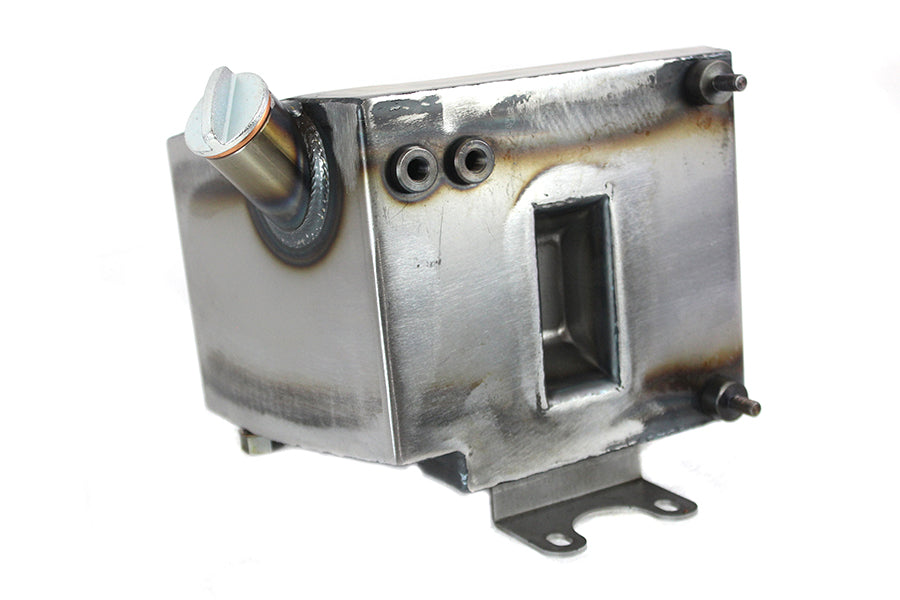

Raw WL side fill oil tank features 1/8 NPT inserts to accept rubber oil lines 2 coil mounting studs on the left side and the battery box to accept 12 volt mini batteries.
Tank also has a pocket built into the front of the tank to allow clearance of the stock battery box mount on the frame. Includes threaded filler cap and drain plug. Battery compartment measures: 3-3/4 deep x 4-7/8 wide x 4-1/4 high. *NOTE: Must order connector fittings separately. *NOTE: There is no need to remove the battery box tab!

G 1936-1963
W 1936-1952

Country Of Origin: TAIWAN

Accessory Items:
40-0883 - Hex Oil Fitting 1/8 NPT
40-0519 - Gas and Oil Line Fitting
40-1006 - 45 WL Chrome Side Fill Wrap Around Oil Tank
40-0877 - WR Hex Barb Oil Line Fitting Set Zinc Plated

Tech Notes: Suggested to use with #53-0075 Anti Gravity 12 Volt 16 Cell Battery. Suggested to use with #53-0505 Mini 12 Volt Battery.
Measurement: Width: 4-7/8 inches
