49-0172

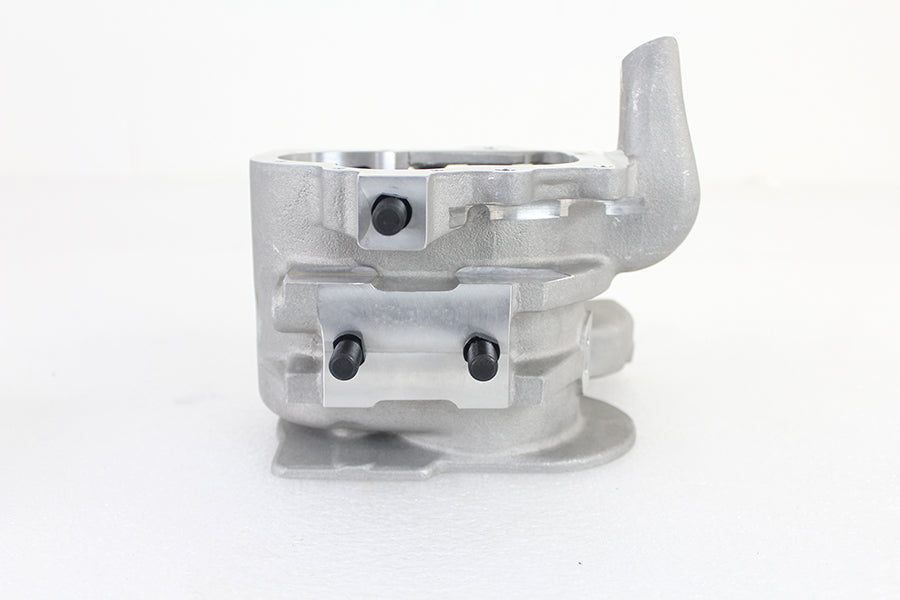

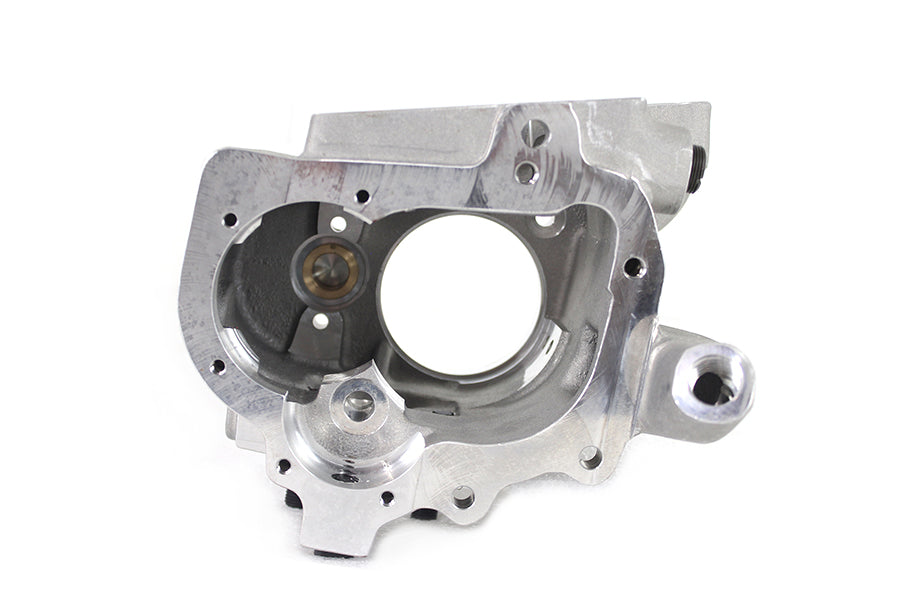

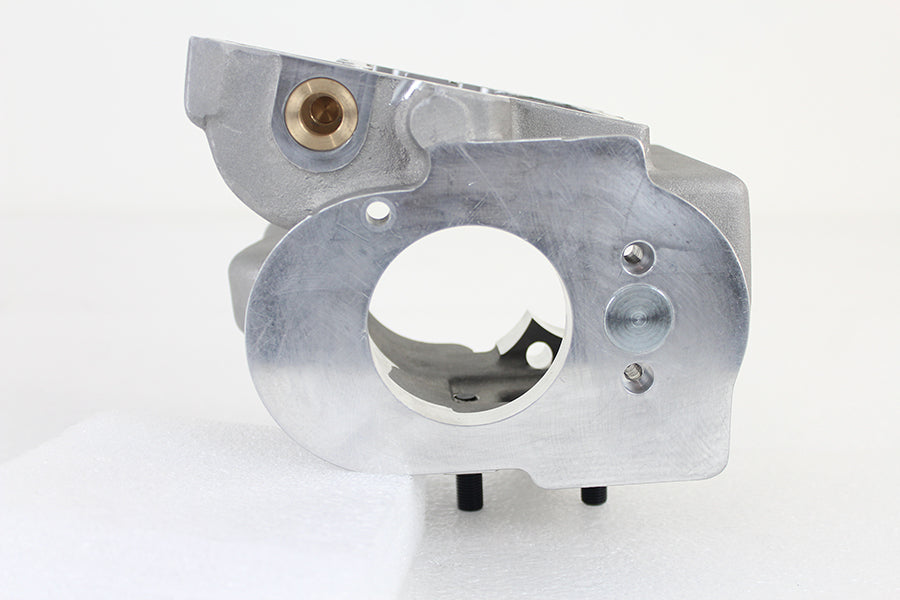

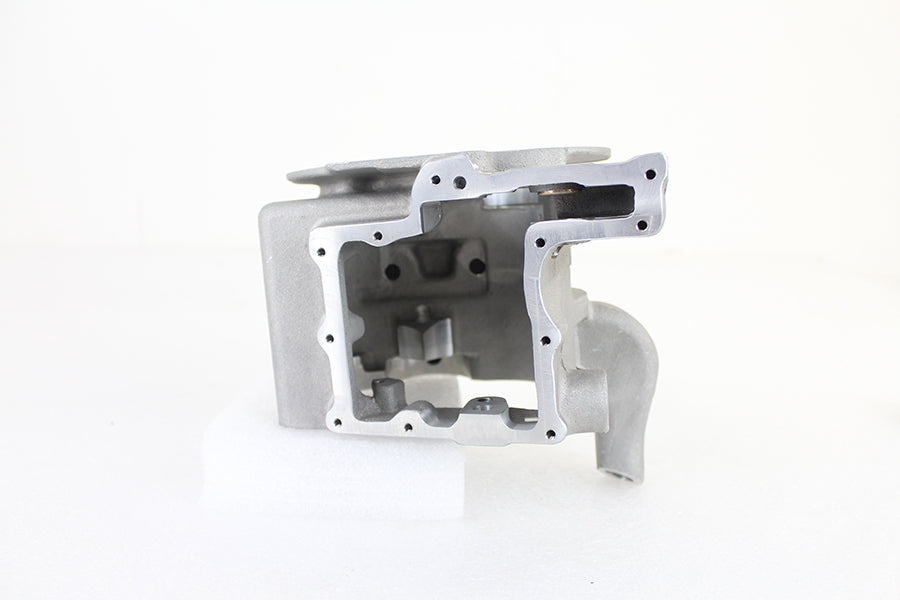

49-0172 - 45 W/G Transmission Case
$595.00
SKU49-0172
45 inch W/G transmission case. Case accepts: 3-speed 3-speed and reverse and 4-speed internals. *NOTE: 45 inch W/G transmission case requires components and hardware as listed for assembly separately. *NOTE: Bottom mount studs left countershaft transmission bushing both the inner and outer shifter bushings with the welch plug and the cam plunger bushing are installed. *NOTE: The main race required available separately has to be pressed in must be honed after installation.
FITS
- 1937-1939 WL - with 3-speed reverse models
- 1937-1963 G - with 3-speed reverse models
- 1941-1952 W - 4-speed
OEM
ACCESSORIES
TECHNICAL SPECIFICATIONS
- Required to use with #17-0372 2nd Gear Retaining Bracket.
- Required to use with #49-0455 Transmission Side Cover for on 4-speed Transmission Case. Required to use with #9836-10 Chrome Countersunk Washer Set 3/8inch.
- Required to use with #10-2527 Cam Bushing .005 Oversize. Required to use with #12-0599 Engine Case 1/2inch Welch Plug. Required to use with #9919-3 Transmission Bottom Stud Kit.
- Required to use with #9761-4 Kick Starter Trip Bolt and Nut Kit. Required to use with #49-0080 Transmission Case Cover. Required to use with #17-0391 Servi-Car Reverse Idler Shaft.
- Required to use with #10-2547 Left Countershaft Transmission Bushing. Required to use with #2655-1 Transmission Fill Plug.
- Required to use with #9686-16 Sprocket Cover Stud Nut Kit Parkerized. Required to use with #9666-27 Transmission Top and Side Cover Screw Kit Parkerized.
