49-0503 - 45 inch Sprocket Cover Parkerized Narrow by V-Twin

V-Twin

49-0503 - 45 Sprocket Cover Black Narrow

$123.00 Sale • Save

SKU 49-0503

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

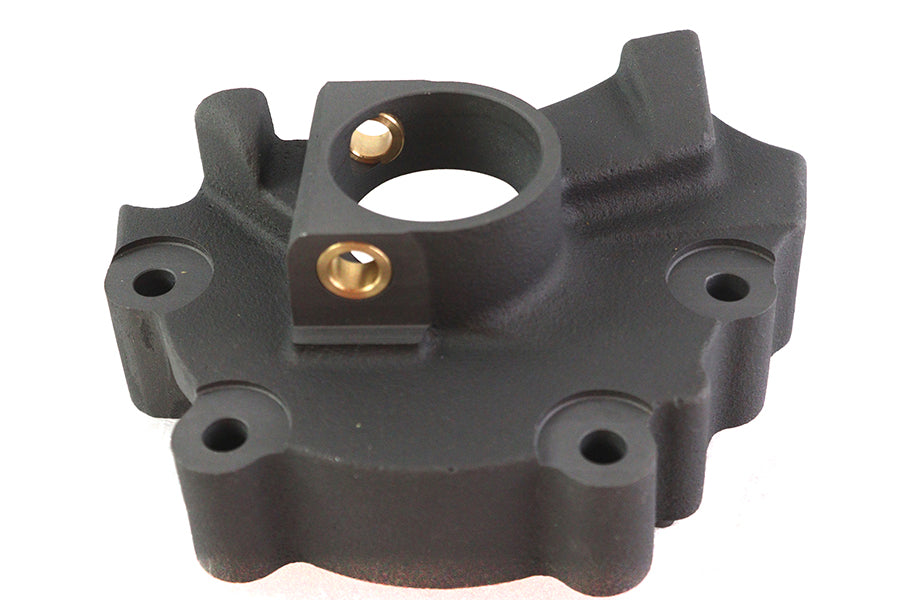

2021 New Production 45 W side valve sprocket cover features a parkerized finish. Cover features lever bushings which are installed. Cover is 1-15/16 inch wide at pivot bushing area. Bare sprocket cover only does not include arm and hardware must order separately. The width at the pivot point on the cast sprocket cover is 48mm. *NOTE: Casting needs hole drilled and tapped to mount original chain guard.

FITS
  • 1941-1943 W
OEM
  • 34873-41 NARROW

    • ACCESSORIES
    • 49-0419 - 45 inch WL Sprocket Cover Parkerized
    • 49-0640 - 45 WR Sprocket Cover Aluminum Narrow
    • 49-0295 - Narrow 45 inch Clutch Release Arm Parkerized
    TECHNICAL SPECIFICATIONS
    • Required to use with #49-0295 Narrow 45inch Clutch Release Arm Parkerized.
    • Suggested to use with #8904-6 Pivot Clutch Arm Rebuild Kit Cadmium
