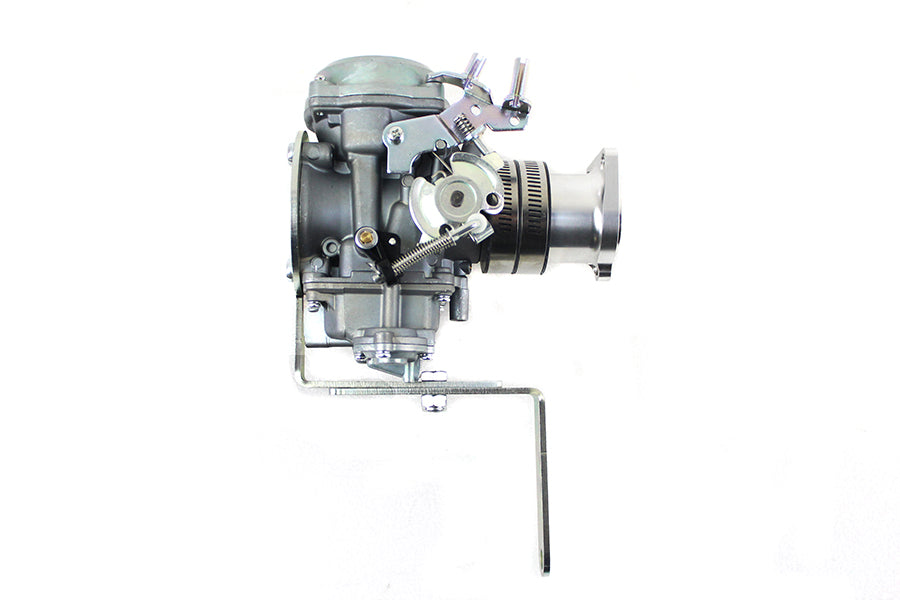

35-0629 - 40mm CV Carburetor Kit for Big Twin Side Valve Models

40mm CV carburetor kit fits 1974-1980 Big Twin side valves and 1930-1951 Indian Chiefs. Kit includes CV adapter with 3 bolt pattern.
For use with external throttle assembly. Fits 3-bolt manifolds to replace linkert carburetor. Installer must fabricate bracket to support carburetor. Additional hardware will be required for installation. *NOTE: For carburetor support the sliding bracket supplied will require drilling a hole for mouonting to the center case bolt (between the cylinders). Cut to length and drill the hole. *NOTE: Twist grip requires pull cable operation cable not included. External 1 twist grip not included. Kit accepts CV type air cleaner assembly which can be purchased separately. Many air cleaner are available for the CV carburetor pattern.

Fits:
Chief 1930-1951
UL 1937-1948

UOM: KIT
Country Of Origin: TAIWAN

Suggested Items:
35-0616 - CV 3 Bolt Linkert Adapter
35-0571 - CV 40mm Carburetor Natural
14-0180 - 40mm V-Twin CV Intake Manifold Seal

Accessory Items:
35-1350 - Linkert Replica Linkert Carburetor for Chief
16-0546 - Keihin Slow Jet Driver Tool
16-0095 - Needle Jet Seat Cutter Tool
35-0134 - High Flow Fuel Inlet Brass
