35-1751 - 40mm CV Carburetor Kit
$217.00
SKU 35-1751

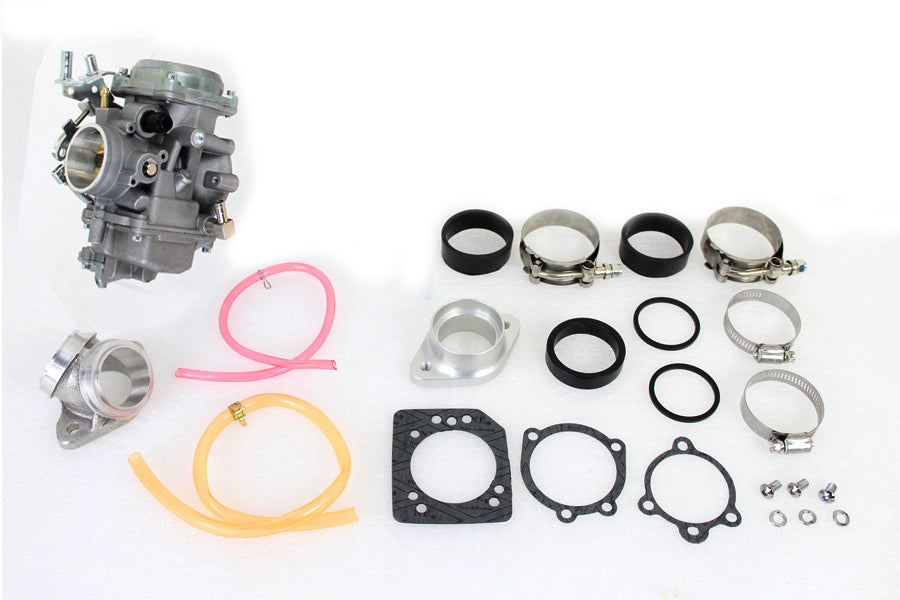

40mm CV carburetor kit includes a replica 40mm CV carburetor manifold adapter intake clamps a late flat intake manifold seal and an adapter ring kit. Throttle is operated by single pull cable operation only not push-oull. *NOTE: Must order correct cable set for your application separately. *NOTE: Includes adapter rings to update o-ring intake port to the late flat style.
FITS
- 1970-1984 FX
- 1978-1984 FL
ACCESSORIES
REPLACEMENT
- 14-0180 - 40mm V-Twin CV Intake Manifold Seal
- 35-9150 - CV Carburetor Adapter Flange
- 35-0447 - CV Carburetor Enrichment Assembly
- 30-0256 - Exhaust Pipe Heat Shield Worm Clamp Set
- 35-0411 - Intake Manifold Adapter Rings
- 35-0448 - Power Intake Manifold Clamp Kit with Flat Seals
- 35-0085 - Replica Alloy Intake Manifold
TECHNICAL SPECIFICATIONS
- Suggested to use with #36-0858 (stock) or #36-0861 (+8inch) Black Throttle and Idle Cable Set for 1996-up Softail FXD and FLT models.
- Suggested to use with #36-0859 (stock) or #36-0862 (+8inch) Black Throttle and Idle Cable Set for 1990-95 Softail FXD and FLT models.
- Suggested to use with #36-0860 (stock) #36-0863 (+8inch) or #36-2561 (+12inch) Black Throttle and Idle Cable Set for 1981-89 Softail and FLH models.
- Suggested to use with #34-0202 Chrome Air Cleaner Support Bracket.
- Suggested to use with #31-9900 CV Carburetor Support Bracket Kit Zinc Plated.
