35-0695 - 38mm OKO Flatslide Carburetor Kit

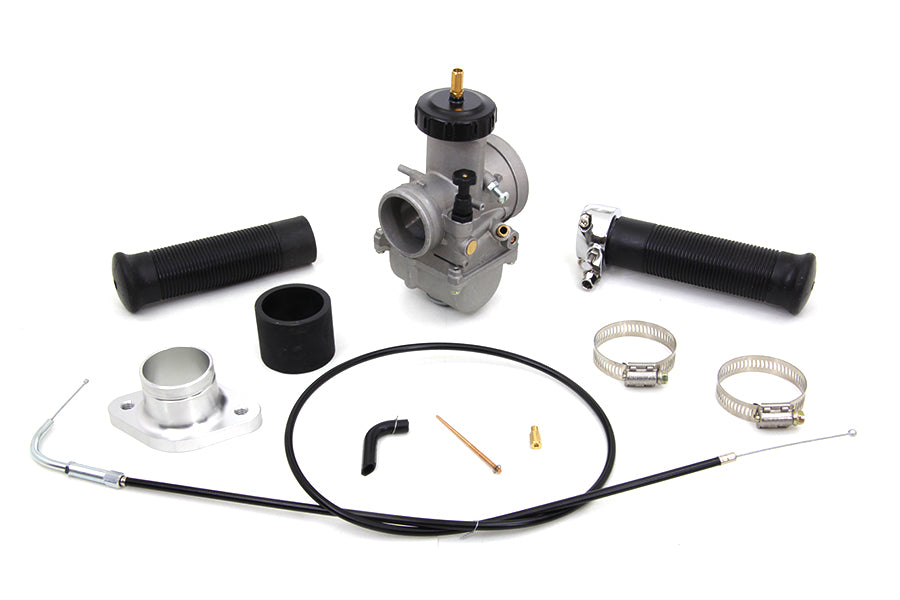

Kit includes 38mm OKO flatslide carburetor with built in choke activator spigot intake manifold throttle cable two bolt flange adapter and twist grip set.
Kit includes seal adapters for use with the flat band type seals which are provided. Carburetor is OKO brand. Must order air cleaner which will allow the coice of CV air cleaners separately. In order to mount air cleaner use V-Twin #34-1425 air cleaner adapter available separately. Includes bracket for supporting carburetor which mounts to the center motor case stud and face of carburetor. Air cleaner mounts on to pof the bracket with the same screws for installtion. *NOTE Use the spigot adapter to fit Carburetors with CV 3 bolt air cleaner. *NOTE: Kit utilizes original stock intake manifold to attach to adapter spigot.

Fits:
FL 1966-1984
Fx 1966-1984
XL 1961-1984

UOM: KIT
Country Of Origin: TAIWAN

Suggested Items:
36-0105 - Black Throttle Cable with 38 Casing and 90 Elbow Fitting
35-0848 - 38mm OKO Flatslide Carburetor
35-0071 - Handlebar Throttle Assembly Chrome
35-0098 - Cast Mikuni Carburetor Flange Adapter
28-0981 - 39mm Flatslide Carburetor Rubber Sleeve

Accessory Items:
31-9918 - Chrome Air Cleaner Support Bracket
34-1425 - Air Cleaner Adapter Flange
35-0667 - Panhead CV-40mm Carburetor Kit
34-0645 - Rodan Billet Carburetor Cover Smooth

Tech Notes: Suggested to use with #28-0981 38mm Carburetor Rubber Sleeve.
