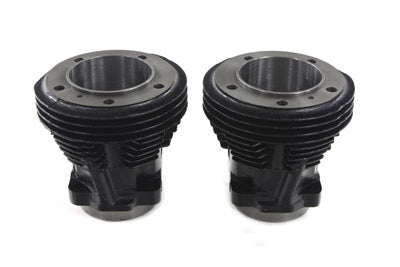

11-0385 - 3-5/8 inch Cylinder Set

Cylinders are .200 taller than stock height cylinders. For installation of 3-5/8 inch cylinders after spigot holes have been enlargedto 3.8750 inch. (See diagram for photos.) Cylinders are honed to a finished bore size of 3.6270 and are required to break in as suggested in the shop manual. Set of two cylinders only. Order 3-5/8 inch standard size pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750 inch. Disassmbly of engine is required to install these cylinders. *NOTE: 3-5/8 inch cylinders are drilled to use with 4-1/2 inch stroke. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.

MEASUREMENTS

• Length: 6-7/8 inches
