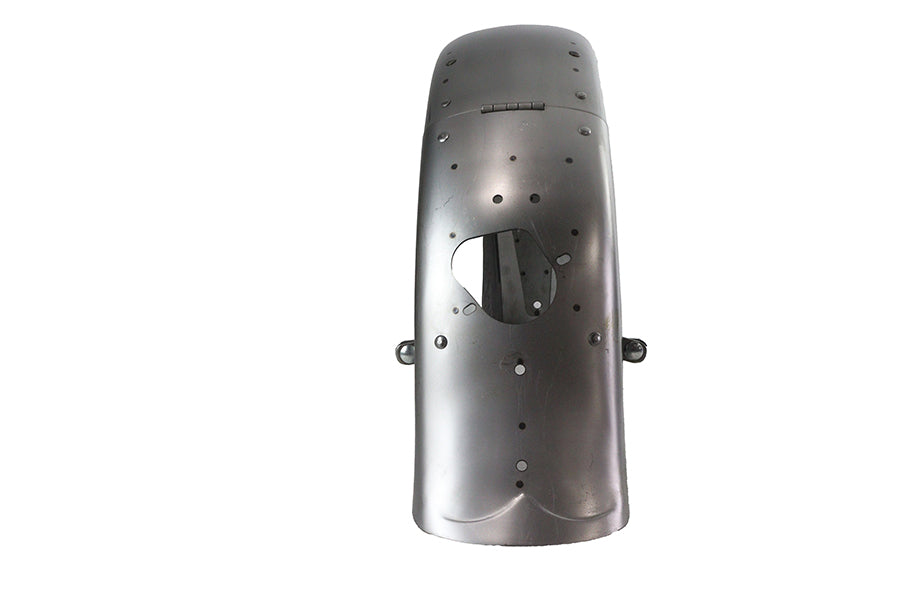

1955-57 FL Rigid Rear Fender
SKU 50-0366
2024 New Production replica rigid rear fender has a 3 rib indent on the rear chain relief cut out. Fender is fully assembled and riveted together with hinge. Fender features a raw finish and 7/8 inch wide strap for braces. Underside of fender includes wire loom track welded in place side loom track and 2 clips to hold spring loom cover. Spring type flexible loom available separately. All hinged fenders must be hand fitted at the hinge and pin area. Alignment needs to be adjusted and tweaked to fit your components. Before finishing with primer or painting fit the fender body braces mounting points in place and check the alignment of fender tail and bracket. Fender rivets hinge and brackets need to be tweaked for final fitment. Patience is required for proper installation! *NOTE: Chain panel with ribs is built-in as one piece with the fender. Features cut out for 1955-69 tail lamp. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: Replacement fenders ordered through H-D dealers came with 3/4 inch brackets that are inchover the counter inch replacement not OEM installed by the factory. Constructed with 3/4 inch fender brace.*NOTE: Use with license plate bracket replica tail lamp primer and tail lamp with glass lens.
- 1955-1957 FL
- 59699-55
- Large Loop Width: 1/2 inches
- Narrow Loop Width: 3/8 inches
- Pin: 5.4mm
- Width: 7/8 inches
- Strap Brace Width: 7/8 inches
- Fender Width: 7-1/4 inches
- 50-0429 - 1949-54 FL Rigid Rear Fender
- 50-0324 - Big Twin Rigid Rear Fender Raw
- 50-0363 - Raw Rigid Rear Fender Assembly
- 50-0372 - Rigid Rear Fender Assembled
- 50-1250 - Wire loom Fender Strip Raw
- 50-1199 - Rear Fender Tail End with Hinge
- 50-1576 - Swingarm Rear Fender Hinge
- Suggested to use with #50-1250 Wire loom Fender Strip Raw
- Suggested to use with #33-0299 Replica Tail Lamp Primer
- Suggested to use with #33-0300 Stock Type Chrome oval Tail Lamp.
- Suggested to use with #33-1804 Tail Lamp with Glass Lens
