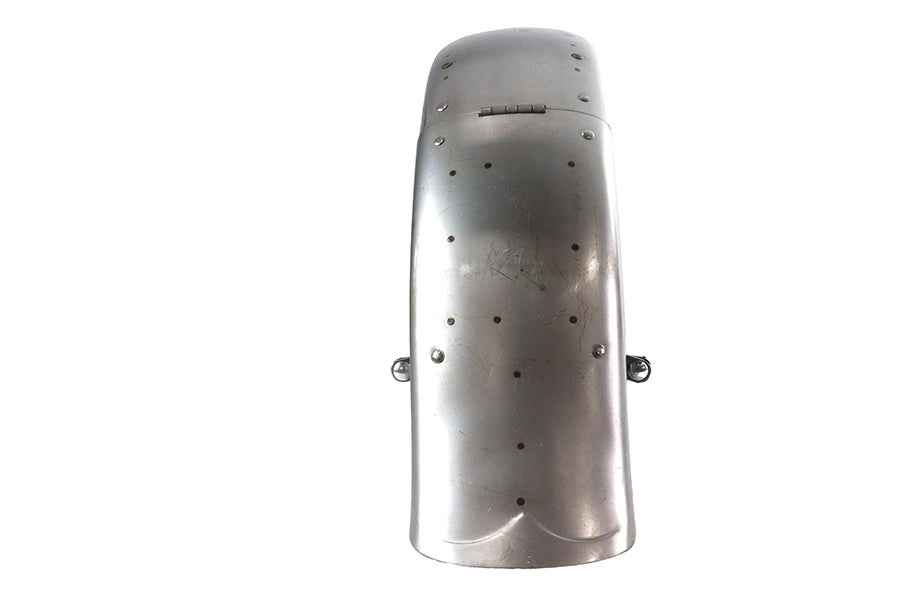

1949-54 FL Rigid Rear Fender
SKU 50-0429
2024 New Production rear rigid fender assembly includes a segmented wire loom conduit and features an updated hinge design for the rear tail. Chain panel is ribbed and part of the fender. Assembly features a raw finish. Rigid rear fender features a three rib indent in the chain guard cut-out panel and 7/8 inch wide braces. 1949 rigid rear fender features a one rib indent. Wire loom provisions on underside includes replica rigid rear fender hinge spring connector loom and segmented tube on skirt. Assembly is for use with Tombstone tail lamps. Includes straps and u starp reveted in place. *NOTE: Does not accept stainless steel fender trim and clips for this year. *NOTE: Replacement fenders ordered through H-D dealers came with 3/4 inch brackets that are inchover the counter inch replacements not OEM installed by the factory. Constructed with 3/4 inch fender brace. *NOTE: Fender tail with cut out is #50-0366.
- 1949-1952 EL
- 1949-1954 FL
- Strap Brace Width: 7/8 inches
- Fender Width: 7-1/4 inches
- 50-1250 - Wire loom Fender Strip Raw
- 50-0528 - Rear Fender U Strap Raw
- 32-2036 - Tail Lamp Spiral Cover Set
- Suggested to use with #31-0186 Parkerized Rear Kickstand Catch
- Suggested to use with #50-1250 Wire loom Fender Strip Raw
