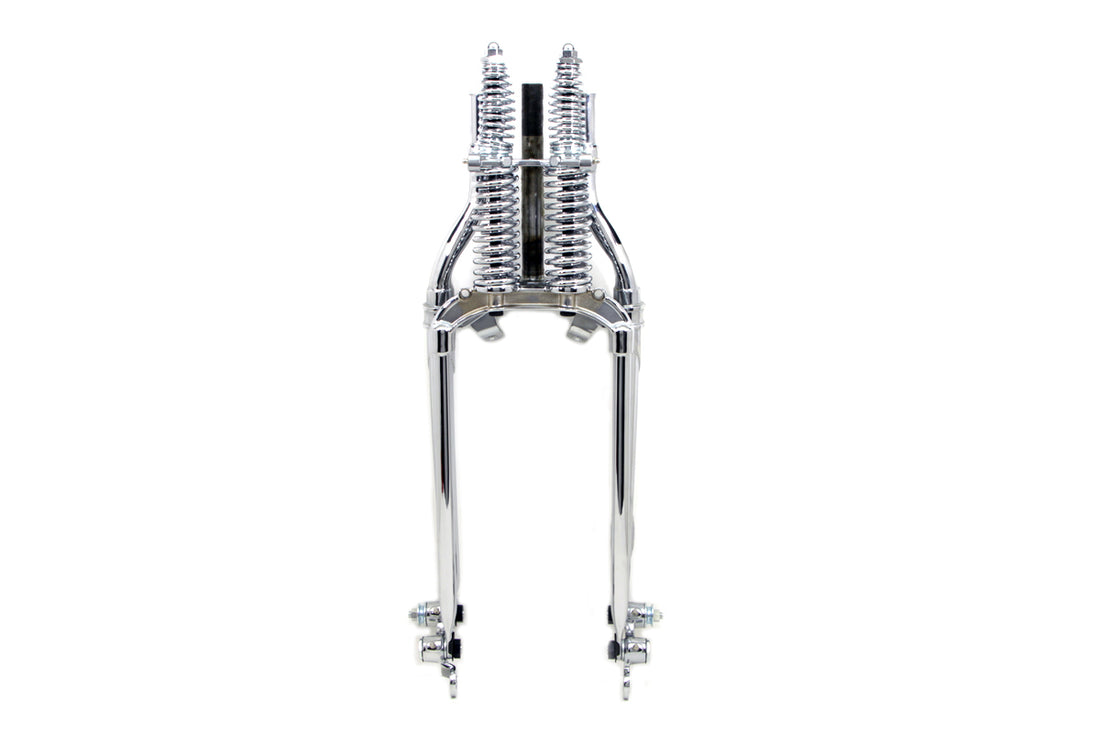

49-2909 - 18 Inline Spring Fork Assembly Chrome

Kit includes front and rear chrome legs chrome outer springs chrome rockers and zinc plated rocker studs. It comes completely assembled with a 1 stem with 1 x 24 thread.
Order bearing neck kit axle kit top tree and handlebars separately. Some assembly may be required. Bottom of neck is larger in diameter to accommodate the Lower Race. Rear fork leg is not tapped. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line. This complete replica Spring Fork assembly is a product of 14 separate processes: Tubing Hydraulic Swage Press Investment Casting Forging Flattening Press Robotic Welding Brazing Polish Chrome Paint Spring Winder Machine Shop Drill Shop and Packaging.

Fits:
EL 1936-1940
FL 1941-1945
UL 1937-1945

UOM: KIT
Country Of Origin: TAIWAN

Accessory Items:
16-0529 - Mini Motorcycle Lift Tool
16-0178 - Spring Fork Nut Tool
24-0655 - 45 Neck Cup Kit Ball Bearing

Tech Notes: *NOTE: Must order shock ride control axle assembly top tree and bearing kit as required. How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for ease of installation.
Measurement: Length: 18 inches
