45-0384
16 inch Wire Wheel Cover Set
$160.00
SKU 45-0384

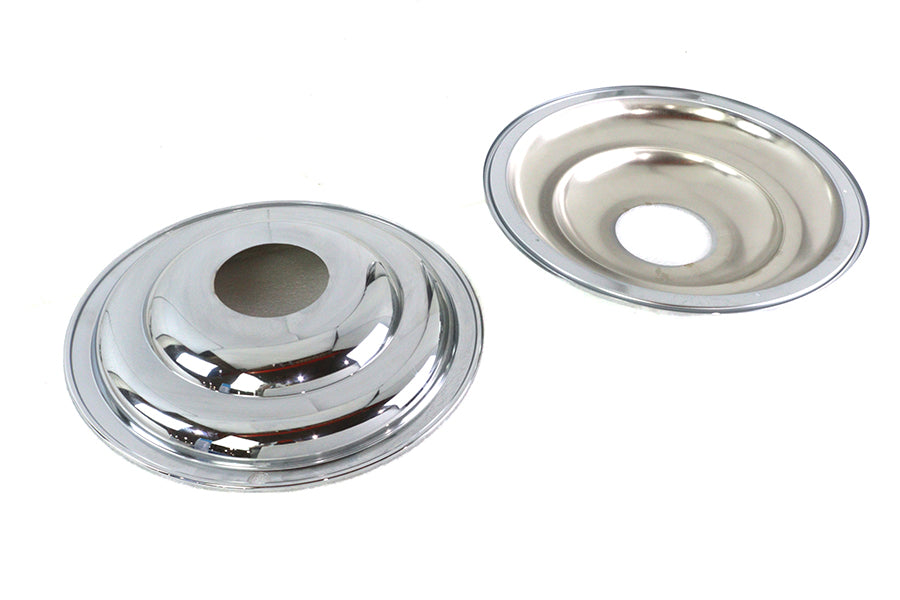

16 inch wire wheel cover set is for spoked front and rear wheels with alloy hubs. Set includes 2 chrome cover with 4.1 inch round holes. Covers have hole to fit over large outer diameter of hub on each side. Both sides of the covers are the same and are attached with (5) screws. Both sides have a 4.1 inch hole to fit over cast alloy hub. First half features a side stem hole valve and 5 small mount holes. The second half features a 4.1 inch center hole no valve stem and 5 small mount holes. *NOTE: Installer must drill 5 small holes for mounting after installation. For metal stem side mount tubed tires. Drill size is 1/8 inch.
FITS
- 2000-2007 FLT - rear
- 2000-2017 FLST - rear
- 2000-2017 FXD - rear
- 2000-UP FL - front
- 2000-UP FX - rear
- 2000-UP FXST - rear
- 2000-UP XL - rear
MEASUREMENTS
- Center Hole I.D.: 4.25 inches
ACCESSORIES
- 45-0384 - 16 inch Wire Wheel Cover Set
- 45-0378 - 16 inch Front Wire Wheel Cover Set Chrome
- 37-0931 - Wheel Cover Stainless Steel 6-32 Bolt and Nut Kit
