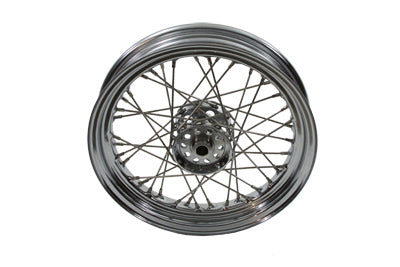

52-0803 - 16 Front or Rear Spoke Wheel

16 X 3.0 wheel assembly includes chrome hub rim and stainless steel spokes.
This wheel assembly also includes lock screw seal spacer tube spacer and one bearing. The hub must be supported by a brake drum or front brake disc flange adapter. The front drum uses one bearing the rear drum sprocket uses two bearings. The valve stem hole is on the star side of the hub. **NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation.

Fits:
FL 1967-1972
Fx 1971-1972

UOM: EA
Country Of Origin: TAIWAN

Suggested Items:
45-0409 - Polished Stainless Steel 16 Spoke Set
52-0226 - 16 X 3.00 Rear Rim Drop Center

Accessory Items:
16-1765 - Belt Tensioner Gauge
16-1615 - Chain Puller Tool

Tech Notes: When looking at the star side of the wheel the inner layer of spokes should point clockwise. Rim width is measured by the distance between the rim flanges. Suggested to use with #45-0314 front brake disc flange adapter
