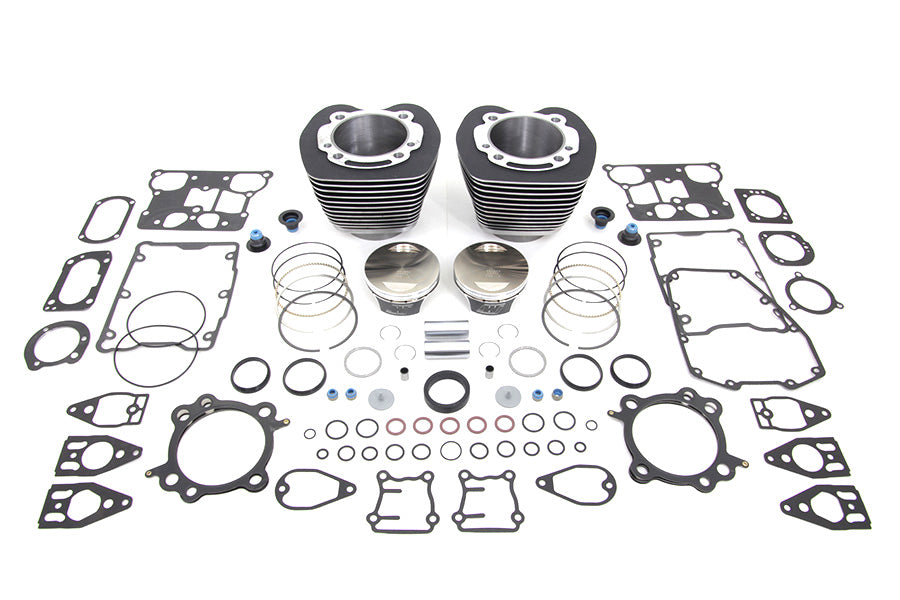

11-1523 - 110 CI Cylinder Kit Black

110 motorshop 4 big bore bolt on cylinder and piston kit takes your 96ci or 103ci motor to a full 110ci without removing the engine from the chassis.
Complete top end gasket kit is included with the fitted cylinders and Wiseco pistons. The 4 big bore cylinder and piston package increases the internal bore from 3-7/8 to 4 without increasing the outside diameter of the cylinder spigot. The cylinder slips into the existing case bore without modification. Kit will add 7 cubic inches of displacement for more torque throughout the RPM range. The kit includes front and rear cylinders and system-matched pistons with rings. The finished honed size of this bore cylinder is 4.005 . The compression ratio is 10.5:1. *NOTE: The base gaskets are not included.

Fits:
FLST 2007-2017
FLT 2007-2016
FXD 2007-2017
FXST 2007-2017

UOM: KIT
Country Of Origin: TAIWAN
OEM Cross Reference: 92500039

Suggested Items:
11-1421 - 1800cc 4 Big Bore Cylinder
11-0849 - Wiseco Twin Cam 110 Big Bore Piston Kit

Accessory Items:
11-1421 - 1800cc 4 Big Bore Cylinder
11-0849 - Wiseco Twin Cam 110 Big Bore Piston Kit
