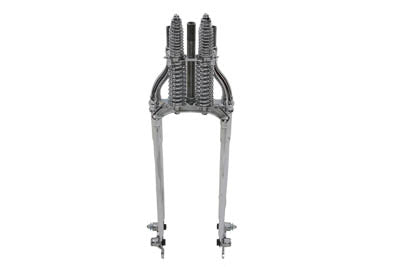

49-2417 - 22 Inline Spring Fork Chrome +4

Unit features chrome front legs chrome outer springs chrome rockers and chrome rear leg.
Includes inner and outer springs front and rear legs 1 inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum studs and bushings spring rods with bushings. Some assembly may be required. These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp neck races and cone nut are not included. *NOTE: UPS may conside this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line.

Fits:
EL 1936-1945
FL 1941-1945
UL 1937-1945

UOM: EA
Country Of Origin: TAIWAN

Suggested Items:
49-0235 - Rebuild Kit
49-0573 - Rod Acorn Nut Chrome
7706-2 - Cadmium Spring Rod Bushing

Accessory Items:
49-2420 - 22 Inline Spring Fork Assembly Black
16-0178 - Spring Fork Nut Tool
24-0655 - 45 Neck Cup Kit Ball Bearing

Tech Notes: Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging. *NOTE: Must order shock ride control axle assembly top tree and bearing kit as required. How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for ease of installation.
Measurement: Length: 22 inches
