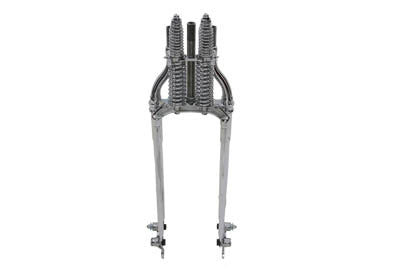

49-2464 - Factory Sample 22 inch Inline Spring Fork Chrome +4 inch

Unit features chrome front legs chrome outer springs chrome rockers and chrome rear leg. Includes inner and outer springs front and rear legs 1 inch inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum studs and bushings spring rods with bushings. Some assembly may be required. These forks are replicas of the stock unitswith electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp neck races and cone nut are not included. Factory sample cover are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment. *NOTE: UPS may conside this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping cost. *NOTE: We measure from the top of the rear leg(tube) to the front axle center line.

MEASUREMENTS

• Neck Stem: 1 inches x 24T
• Inner Diameter: 1-3/16 inches
• Length: 22 inches
