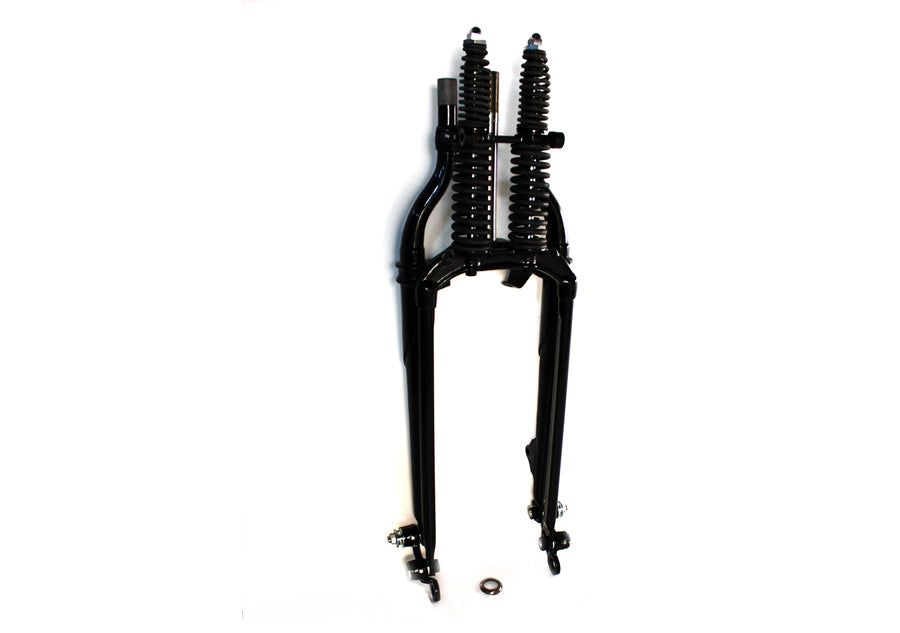

49-2408 - 20 Inline Spring Fork Assembly Black +2

Unit features chrome springs and rockers front and rear leg in black. This 20 inch assembly is 2 inch over stock length. Includes inner and outer springs front and rear legs 1 inch inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum studs and bushings spring rods with bushings. The bottom lower bearing to the center of the axle measures 22 inch. Some assembly may be required. These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp neck races and cone nut are not included. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line.

MEASUREMENTS

• Neck Stem Size: 1 inches x 24T
• Between Rockers: 8 inches
• Length: 20 inches
