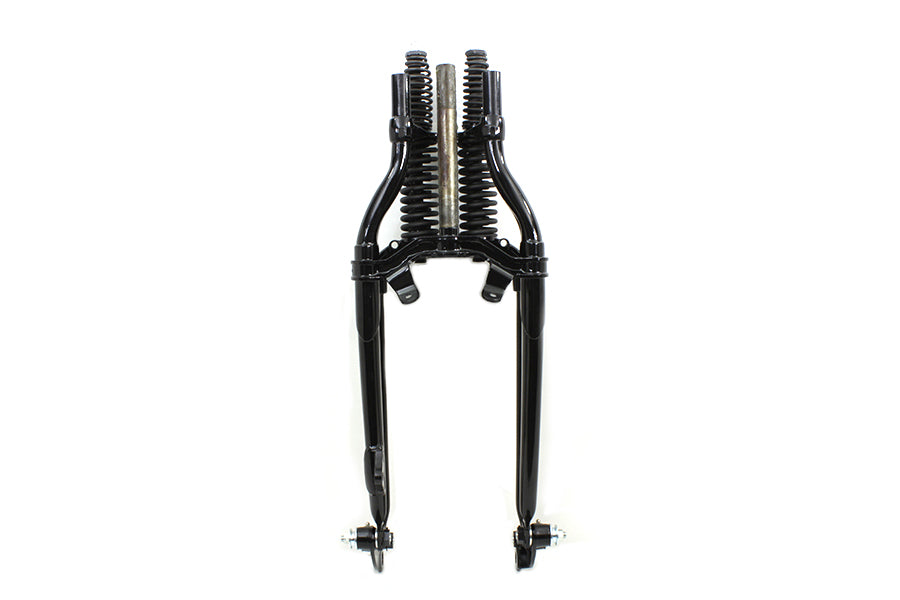

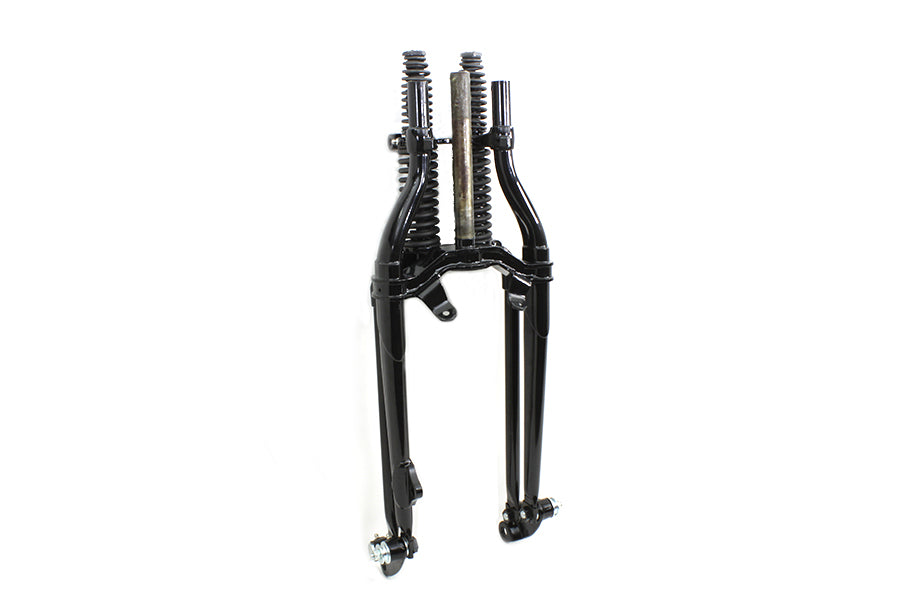

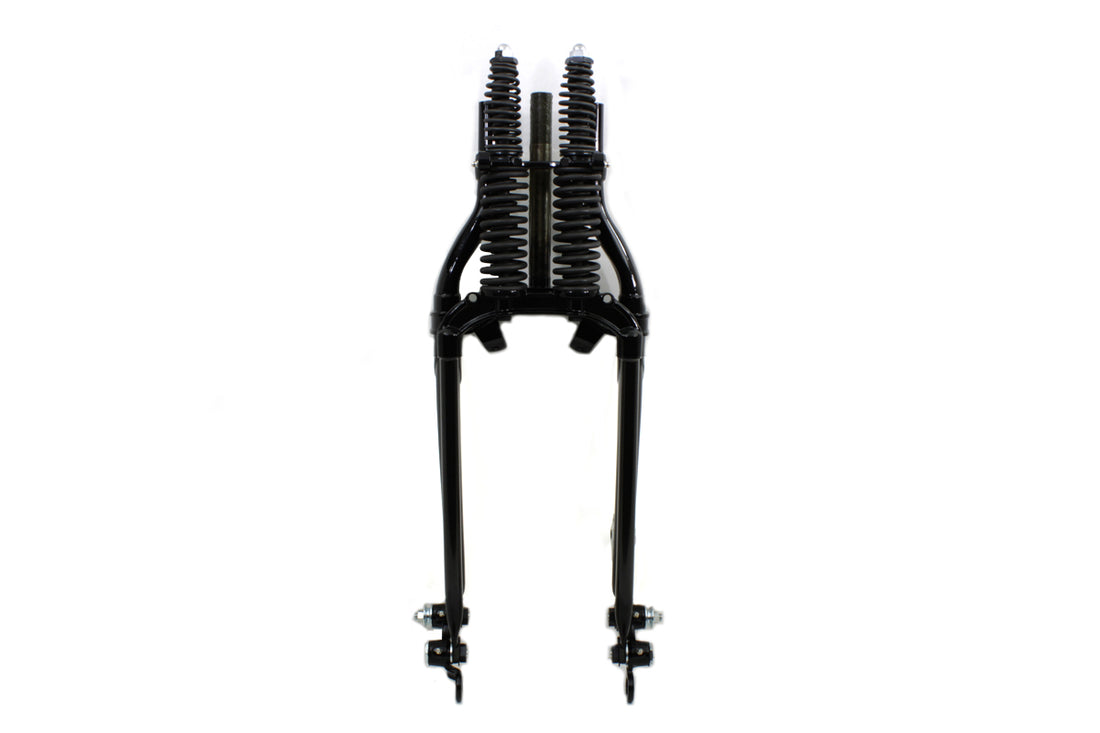

49-2900 - 18 Inline Spring Fork Assembly

Kit includes front and rear black powder coated legs parkerized outer springs black rockers and zinc plated rocker studs. It comes completely assembled with a 1 inch stem with 1 inch x 24 thread. Order bearing neck kit axle kit top tree and handlebars separately. Some assembly may be required. Bottom of neck is larger in diameter to accommodate the Lower Race. Rear fork leg is not tapped use standard tap *NOTE: Does not have the casting marks. *NOTE: Length measured from bottom of lower race to center of axle on rocerks. See diagram. This complete replica Spring Fork assembly is a product of 14 separate processes: Tubing Hydraulic Swage Press Investment Casting Forging Flattening Press Robotic Welding Brazing Polish Chrome Paint Spring Winder Machine Shop Drill Shop and Packaging.

MEASUREMENTS

• Length: 18 inches
• Axle Size: 3/4 inches
• Between Rockers: 8 inches
