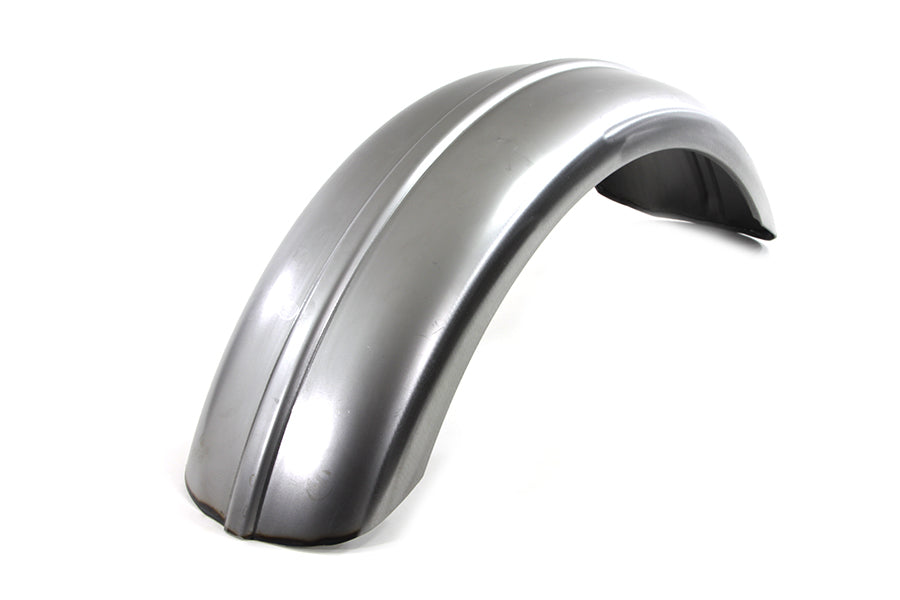

50-1578 - Rear Fender Round Profile

2018 New Production round profile chopper raw fender is 7 inch wide and ribbed type with center bead. For 18 inch wheels. Profile matches original 1930-1933 VL model fender shape. Note: All fenders are shipped raw. Fenders have tooling marks on the rolled or beaded ends from the manufacturing process. Note: Preparation is required before priming and painting after fender is test fit for ease of installation. Position cut drill mount holes as required. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Radius Length: 34 inches
• Tip to Tip: 27-5/8 inches
• Side Wall Height: 1-1/4 inches
• Side to Side Width: 7 inches
• Radius Width: 9-1/2 inches
• Thickness: 1.5mm
• Width: 7-1/4 inches
