22-0373 - Chrome Rear 2 Piston Caliper and Disc Kit

$262.00 Sale • Save

SKU 22-0373

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

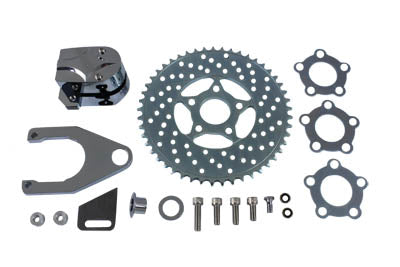

Edart brake caliper and disc set includes a two piston chrome billet caliper a combination polished disc and 49 tooth sprocket. For use on a 1 inch or 3/4 inch axle. Mounting bracket will be flush with the slot for the brake disc once installed. The brake stay tab must be welded to frame by installer. Order rotor bolt kit separately. *NOTE: For 2000-up applications center hole on sprocket needs to be enlarged to 2-1/4 inch. Kit can be adapted to star early hubs 1941-1965 roller bearing hubs.

FITS
  • 0- Custom - application for 1 or 3/4 axles.

MEASUREMENTS
  • Caliper Width: 2-7/16 inches
  • Center Diameter: 1.971 inches
  • Sprocket I.D.: 1.968 inches
  • Sprocket O.D.: 10 inches
ACCESSORIES
  • 22-0773 - Edart Rear Sprocket Caliper Kit
  • 23-0799 - Rebuild Kit for Brake Caliper and Disc Set
TECHNICAL SPECIFICATIONS
  • Suggested to use with #23-6040 Brake Hose Banjo Bolt 10mm as a bleeder.
  • Suggested to use with #23-0799 Rebuild Kit for Brake Caliper and Disc Set.
