40-0639 - Replica Black Oil Tank by Wyatt Gatling

Wyatt Gatling

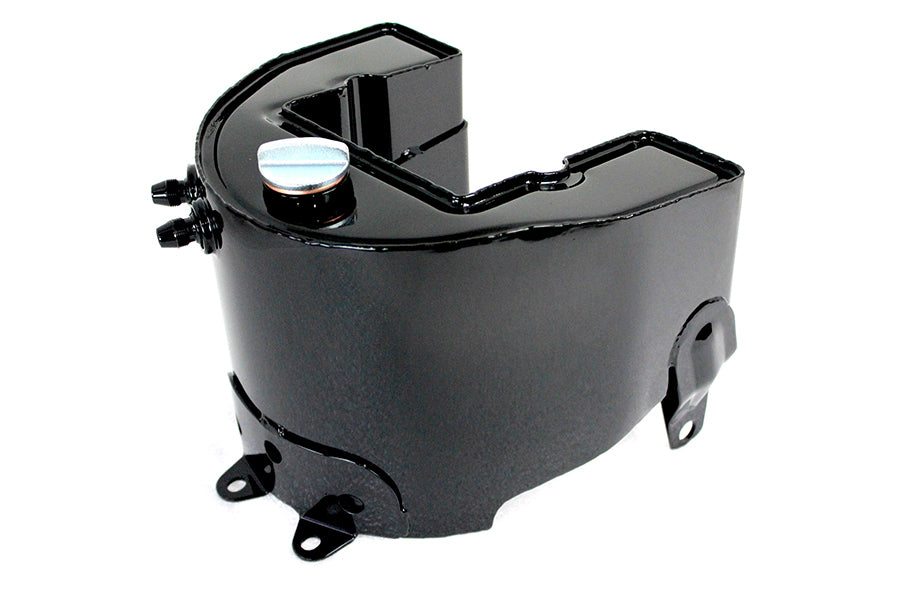

40-0639 - Replica Black Oil Tank

$189.00 Sale • Save

SKU 40-0639

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

2020 New Production replica black painted wrap around oil tank features seam-welded edges which show weld marks as on original tanks. Black tank has a zinc plated cap and is equipped with a screw in dipstick that includes a copper sealing washer. This tank does not have battery rod tabs. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.

FITS
  • 1936-1940 EL
  • 1938-1947 UL
  • 1941-1957 FL

MEASUREMENTS
  • Height Front: 7 inches
  • Height Rear: 6-1/2 inches
  • Depth: 8-1/4 inches
  • Depth of Battery: 5-1/4 inches
  • Width: 10 inches
  • Battery Width: 4-3/4 inches
ACCESSORIES
TECHNICAL SPECIFICATIONS
  • Suggested to use #8115-1 or #8114-1 Stock Type Timing Plug.
  • Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit.
  • Suggested to use with #9504-1 Parkerized Timing and Oil Tank Plug.
