32-1799 - Burkhardt Offset Magneto Assembly

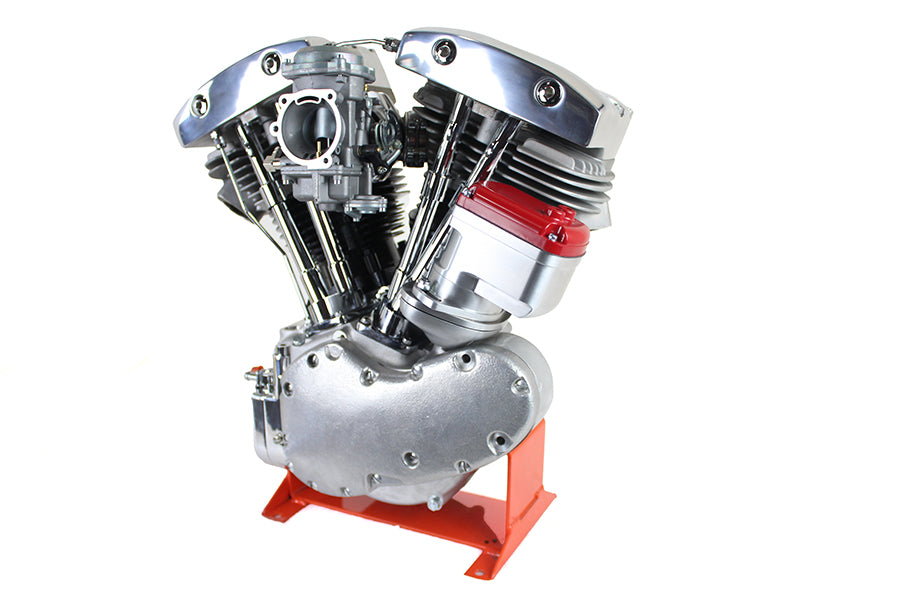

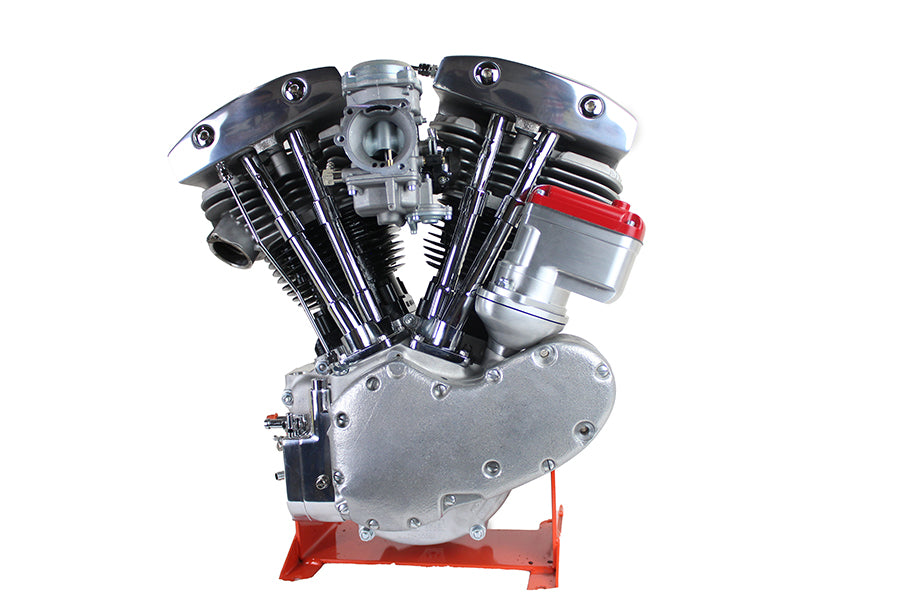

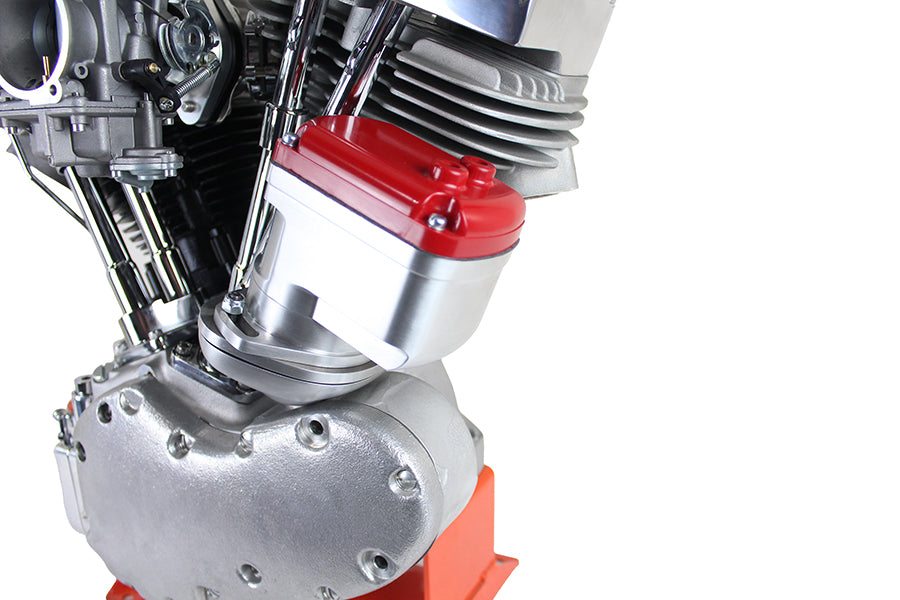

Burkhardt offset magneto assembly is for the generators on 1936-1969 Kuncklehead Panhead and Shovelhead engines. The offset drive allows the magneto head to clear the cylinders and lower head fins.
Includes a natural die cast finish body red and cast magneto cover with a cast cap with screw-in spark plug wire connections an offset base drive left hand Magneto head Burkhardt alloy cover and retro wire set. *NOTE: Assembled in NY. *NOTE: Actual Magneto rotation is left hand. Points and point plate holder are also left handed. *NOTE: Cap will require additional clearance in motor-case-head area near front cylinder. *NOTE: For mounting on all generator model Overhead Twins 1941-1969 Knucklehead Panhead and Shovelhead models. Must use 2 bolt to mount to engine case. 1966-1969 models have a 1/4 -20 stud and 1941-1696 models have a 1/4 -24 thread. For the 1965-1969 Shovelhead model single stud cases it's advisable to drill and tap a second 1/4 -20 hole for the 2 bolts. *NOTE: Must check for clearance with aftermarket heavy duty cases magneto aluminum base may interfere with motor case at distributor base area.

Fits:
EL 1936-1952
FL 1941-1969

UOM: EA
Country Of Origin: TAIWAN
OEM Cross Reference: -

Suggested Items:
12-0986 - Clutch Retaining Ring
32-1217 - Universal Braided Wire Kit 7mm
32-1081 - Magneto Kill Switch Kit
32-1563 - Magneto Kill Switch Button

Accessory Items:
32-1229 - Magneto Base Mount Kit
32-1002 - Vent Cover
32-1043 - EFI Power Commander V
32-1018 - Vent Screen

Tech Notes: Step by step installation instructions on web. Photos shows all phases of assembly. Burkhardt cast magneto top must be installed before front head is installed on motor.
