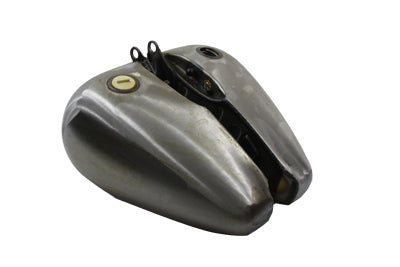

38-0122 - Bobbed 6.0 Gallon Gas Tank Set

Gas tank is a two piece set and has a left side petcock opening. The set has a fuel capacity of 6 gallons. This flat side tank features screw type bungs. Order caps separately. Check the petcock opening making sure the petcock can be easily installed. Petcock opening should be masked or plugged during painting for easy installation of the petcock. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to hel p stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 18-1/4 inches
• Bottom Length: 17-3/4 inches
• Rear Width: 3-1/4 inches
• Front Width: 8 inches
• Rear Height: 2-1/2 inches
• Front Height: 8-1/2 inches
• Front Tunnel Height:
• Rear Tunnel Height:
• Tunnel Length:
