38-0077 - Bobbed 3.2 Gallon Gas Tank Kit
SKU 38-0077

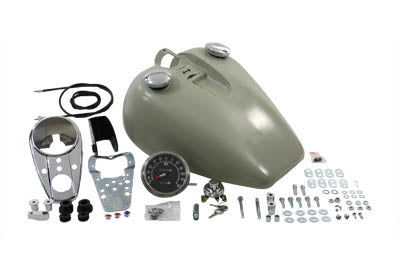

Gas tank is dual cap style with a left side petcock location and a fuel capacity of 3.2 gallons. Kit has a one piece tank that will bolt to the existing mounting holes. Kit includes three light dash plain unwired dash base key switch gas cap set 2:1 speedometer and mounting hardware. You must use an XLS or shorter seat for 1982-up models. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock.
FITS
- 1982-1994 XL
MEASUREMENTS
- Top Length: 18-1/2 inches
- Bottom Length: 16-1/2 inches
- Rear Width: 7 inches
- Front Width: 13-1/2 inches
- Rear Height: 2 inches
- Front Height: 8-1/2 inches
- Front Tunnel Height: 2 inches
- Rear Tunnel Height: 17 inches
- Tunnel Length:
