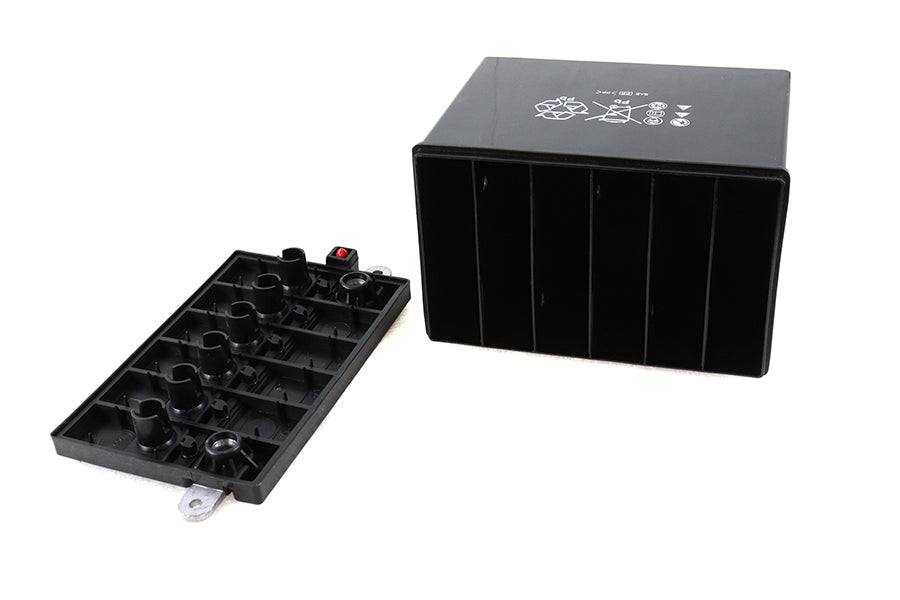

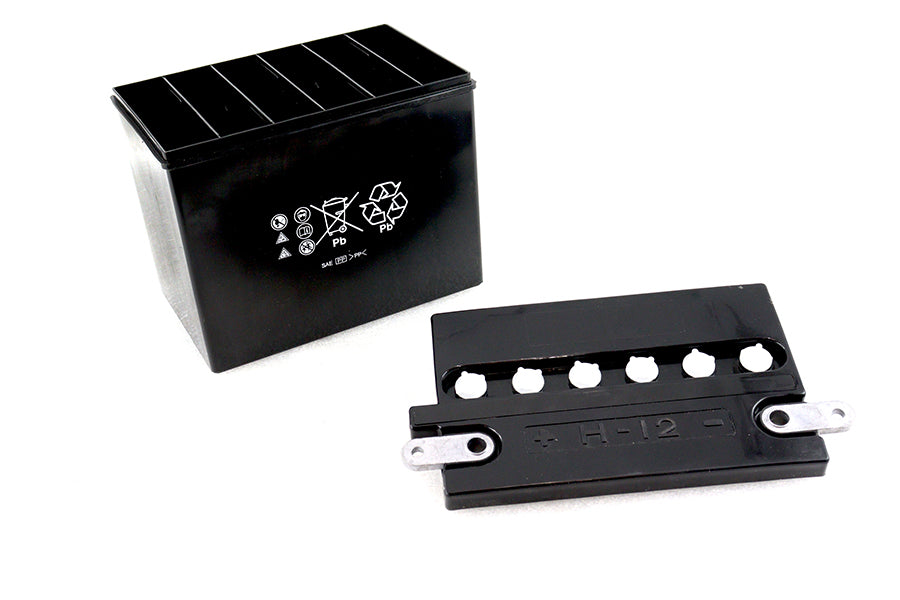

53-0712 - H-12 Battery Box Kit

H-12 battery cast is plastic as original battery with a removable top. Kit features a mock plastic top that will house most smaller batteries and mounts like an original battery. Mock battery box is actually an inchempty inch black plastic battery case and top. The strap top and side cover can hold battery in place. Remove plastic separators in case to fit the smaller battery of your choice. The smaller battery must be fitted inside: spaced insulated and connected to terminals. *NOTE: Must order top OE side cover and strap separately. *NOTE: Internal of empty battery case will house an anti-gravity FXD or XL hi-output battery. *NOTE: Remove as many as 6 separate plates for battery installation. Fit and insulate with foam as required for battery installation. Battery terminals of the inchinstalled inch battery must be connected to the two terminal tabs on the mock battery. Keep the actual battery terminals from the (H-12) mock battery terminals from making any contact.

MEASUREMENTS

• Inside Length: 7-1/2 inches
• Inside Width: 4-3/4 inches
• Inside Height: 6 inches
