11-5555 - OHO Panhead Top End Kit by V-Twin

11-5555 - OHO Panhead Top End Kit

$2,368.00 Sale Save

SKU 11-5555

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

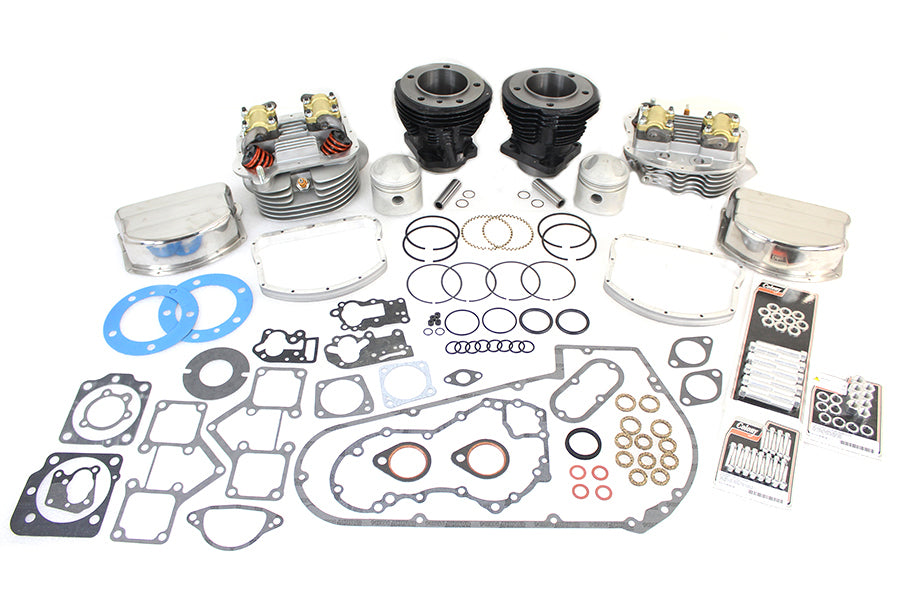

OHO Panhead top end kit. Panhead style heads feature Shovelhead intake and exhaust port style and are fitted with Shovelhead valves. Kit includes standard 74 inch Shovelhead cylinder kit standard bore with fitted hasting rings stainless steel pan covers thick alloy d-rings gaskets and screws. Basically the builder will be installing a inchShovelhead inch functioning top end. Heads accept o-ring Shovelhead manifold and Shovelhead exhaust headers. Essentially heads have components of Shovelhead intake exhaust parts and intake valves. *NOTE: Top end must be fed with a top oil line from cam case which is stock on 1963-1965 FL but may be retro fitted at oil passage area to feed top end.

FITS
  • 1963-1984 FL
  • 1963-1984 FL
  • 1970-1984 FX
  • 1970-1984 FX

ACCESSORIES
  • 16-1851 - Flywheel Locking Tool
  • 11-5000 - Panhead Top End Kit
  • 16-0993 - Sifton Pushrod Adjustment Gauge
REPLACEMENT
  • 11-2603 - 74 inch Shovelhead Cylinder and Piston Kit
  • 8105-16 - Cadmium Cylinder Base Nuts and Washers
  • 7825-20 - Cadmium Stock Head Bolt
  • 15-0509 - Engine Gasket Kit
  • 10-1067 - Panhead Cylinder Heads Full Assembly
  • 42-0771 - Replica Stainless Steel Panhead Valve Cover
  • 42-0130 - Rocker Arm Cover D-Ring Cast
  • 8733-24 - Rocker Box Valve Cover Screw Long Cadmium
  • 32-6695 - V-Twin Performance Spark Plug Set
