11-1257 - 107 inch Big Bore Twin Cam Cylinder Kit by Motorshop

Motorshop

11-1257 - 107 Big Bore Twin Cam Cylinder Kit

$714.57 Sale • Save

SKU 11-1257

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

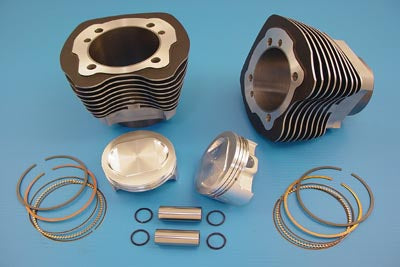

107 inch Twin Cam big bore cylinder kit includes 10.5:1 piston kit and steel cylinders with black finish. Requires case machining and fits a 4 inch stroke flywheel. Cylinder kit measures 0.993 inch length of the sleeve fits into crankcase. Cylinders have a 4-1/8 inch bore. Total length is 5.912 inch. Order top end gasket kit separately.

FITS
  • 1999-2006 FLST
  • 1999-2006 FLT
  • 1999-2006 FXD
  • 1999-2006 FXST

MEASUREMENTS
  • Piston Size: 4.1225 inches
  • Cylinder Size: 4.125 inches
  • Cylinder Height: 5.912 inches
  • Thickeness: .925mm
  • Wrist Pins: 0.928 inches
ACCESSORIES
  • 11-0287 - KB 107 inch Twin Cam Forged Piston Set
  • 15-1375 - Cometic Top End Gasket Kit
REPLACEMENT
  • 11-0287 - KB 107 inch Twin Cam Forged Piston Set
  • 11-0291 - 107 inch Twin Cam Piston Ring Set Standard
TECHNICAL SPECIFICATIONS
  • Suggested to use with #15-1375 Top End Gasket Kit.
