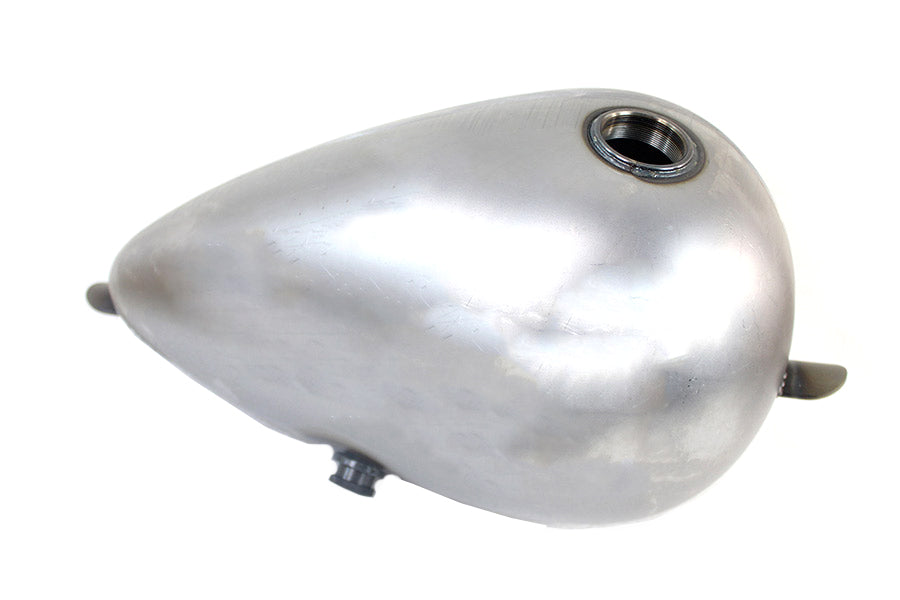

38-0697 - Chopper Axed 2.2 Gallon Gas Tank
SKU 38-0697
Gas tank has a right side petcock opening fuel capacity of 2.2 gallons and a center cap fill. It comes with a screw-in gas cap bung and has front and rear mount tabs. The petcock measures 5/8 inch x 18 and the bung on the left side is 1/2 inch x 20. *NOTE: Cap is on right side and uses a screw in JD gas cap available separately. Check the tank for flaws and fit before painting. It requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. The petcock must be ordered separately. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to h lp stop leaks and prevent corrosion. *Note: UPS may consider this part as p ckaged inchoversize inch for shipment as compared to the actual weight which will re ult in higher shipping costs.
FITS
- 0- Custom - application
MEASUREMENTS
- Length of Tank: 16 inches
- Length of Bottom: 14-3/8 inches
- Width of Rear: 3 inches
- Width of Front: 8-1/2 inches
- Height of Rear: 3 inches
- Height of Front: 9 inches
- Front Tunnel Height: 1-3/4 inches
- Rear Tunner Height: 4-1/8 inches
- Tunnel Length: 13 inches
- Petcock: 5/8 inches x 18
- Left Side Bung: 1/2 inches x 20
