40-0964
40-0964 - 45 WL Raw Side Fill Wrap Around Oil Tank by Wyatt Gatling

Wyatt Gatling

40-0964 - 45 WL Raw Side Fill Wrap Around Oil Tank

$300.00 Sale • Save

SKU 40-0964

Item is in stock Only 2 left in stock Item is out of stock Item is unavailable

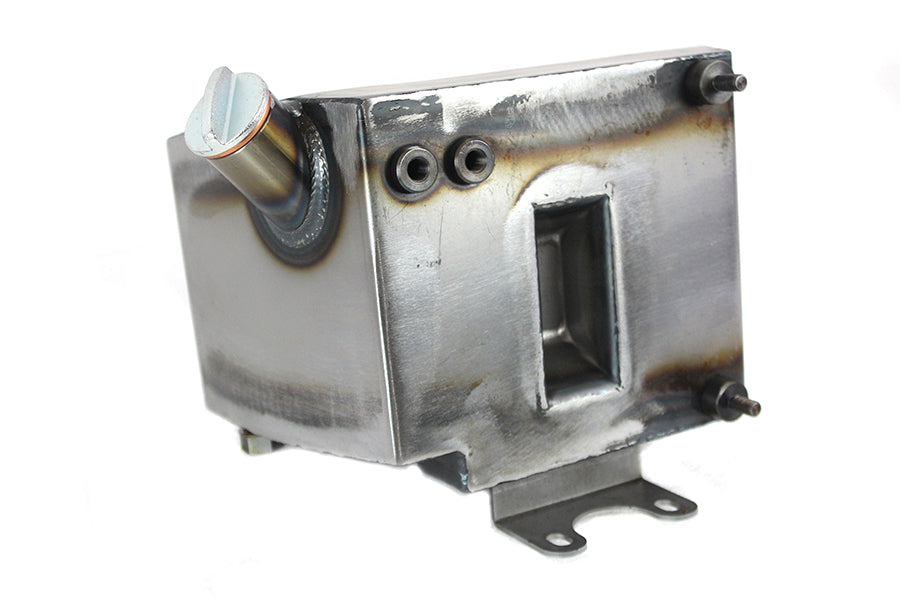

Raw WL side fill oil tank features 1/8 inch NPT inserts to accept rubber oil lines 2 coil mounting studs on the left side and the battery box to accept 12 volt mini batteries. Tank also has a pocket built into the front of the tank to allow clearance of the stock battery box mount on the frame. Includes threaded filler cap and drain plug. Battery compartment measures: 3-3/4 inch deep x 4-7/8 wide x 4-1/4 high. *NOTE: Must order connector fittings separately. *NOTE: There is no need to remove the battery box tab!

FITS
  • 1936-1952 W
  • 1936-1963 G

MEASUREMENTS
  • Tank Overall Length: 10-1/8 inches
  • Tank Overall Width: 6 inches
  • Tank Height: 6 inches
  • Battery Depth: 3-3/4 inches
  • Battery Height: 4-1/4 inches
  • Battery Width: 4-7/8 inches
ACCESSORIES
  • 40-1006 - 45 WL Chrome Side Fill Wrap Around Oil Tank
  • 40-0519 - Gas and Oil Line Fitting
  • 40-0883 - Hex Oil Fitting 1/8 inch NPT
  • 40-0877 - WR Hex Barb Oil Line Fitting Set Zinc Plated
TECHNICAL SPECIFICATIONS
  • Suggested to use with #53-0075 Anti Gravity 12 Volt 16 Cell Battery.
