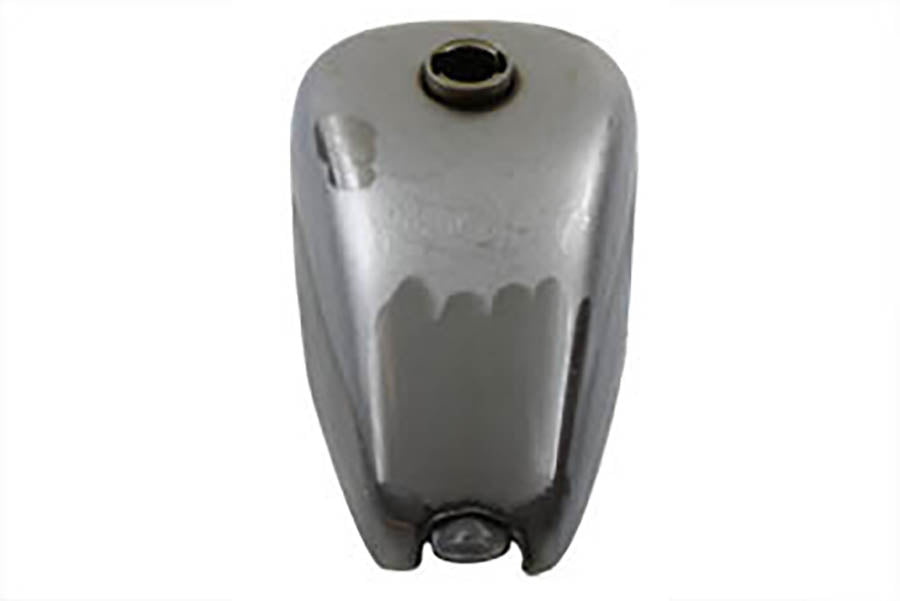

38-0066 - Chopper Sporty 2.5 Gallon Gas Tank
SKU 38-0066
Gas tank has a right side petcock location a fuel capacity of 2.5 gallons and accepts a bayonet style gas cap. The tank is universal with front and rear mounting tabs. It uses a 3/8 inch National Pipe Thread style petcock pre-1975. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will help to stop leaks and prevent corrosion. Check petcock opening masking sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of the petcock. Tank accepts Bayonet vented style gas caps. The tank has underilled tab front and rear for surface mounting on top frame tube. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 0- Custom - application
MEASUREMENTS
- Top Length: 17 inches
- Bottom Length: 16 inches
- Rear Width: 4-1/2 inches
- Front Width: 9 inches
- Rear Height: 1-3/4 inches
- Front Height: 7-9/16 inches
- Front Tunnel Height: 1-1/2 inches
- Rear Tunnel Height: 1-1/2 inches
- Tunnel Length w/Tab: 17-5/8 inches
- Tunnel Length w/o: 15-1/4 inches
- Tunnel Width: 2-1/4 inches
