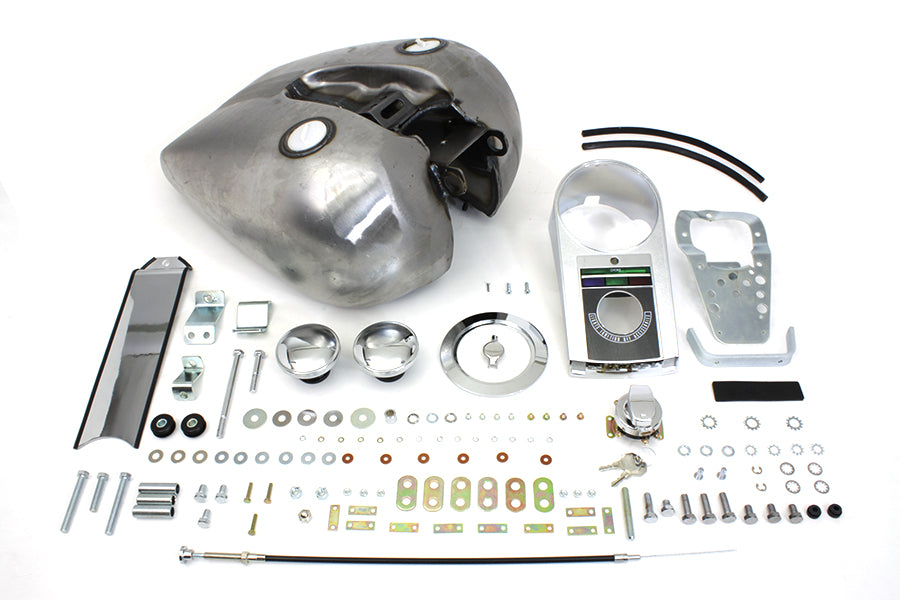

38-0178 - Bobbed 4.0 Gallon Gas Tank Kit

Gas tank has a left side petcock opening and has a fuel capacity of 4.0 gallons. Tank kit includes chrome gas caps and a chrome cast dash with an adapter ring which allows the the reuse of an existing electronic speedometer. For use on carbureted models only. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 18 inches
• Rear Width: 10 inches
• Front Width: 14 inches
• Rear Height: 1-1/4 inches
• Front Height: 8-3/4 inches
• Front Tunnel Height: 7 inches
• Rear Tunnel Height: 1-1/2 inches
• Tunnel Length: 17 inches
