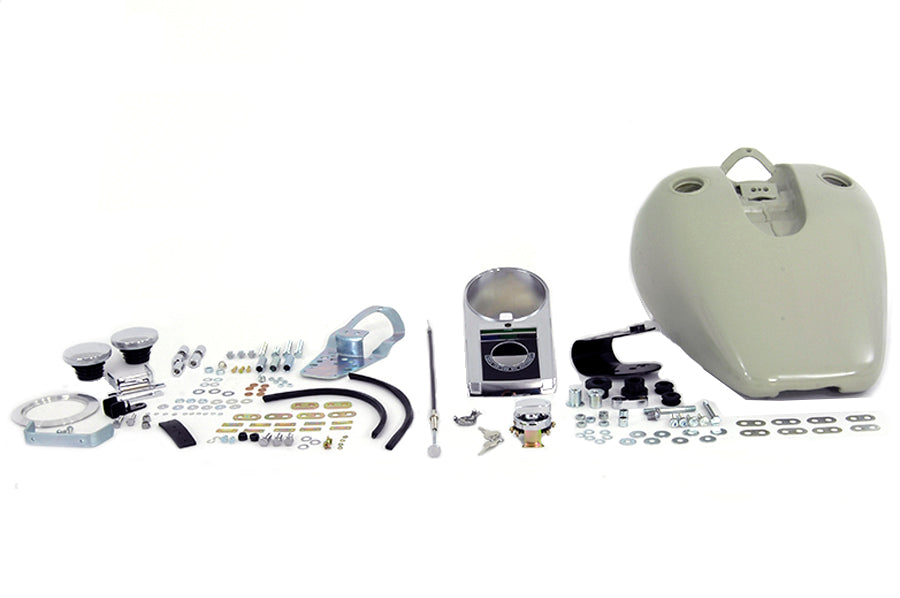

38-0177 - Bobbed 3.2 Gallon Gas Tank Kit

Gas tank has a left side petcock opening and a fuel capacity of 3.2 gallons. Tank includes chrome bung style late caps a chrome cast dash kit speedometer adapter ring and all necessary mounting hardware. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 16-1/2 inches
• Rear Width: 7 inches
• Front Width: 13-1/2 inches
• Rear Height: 2 inches
• Front Height: 8-1/2 inches
• Front Tunnel Height: 8 inches
• Rear Tunnel Height: 2 inches
• Tunnel Length: 17 inches
