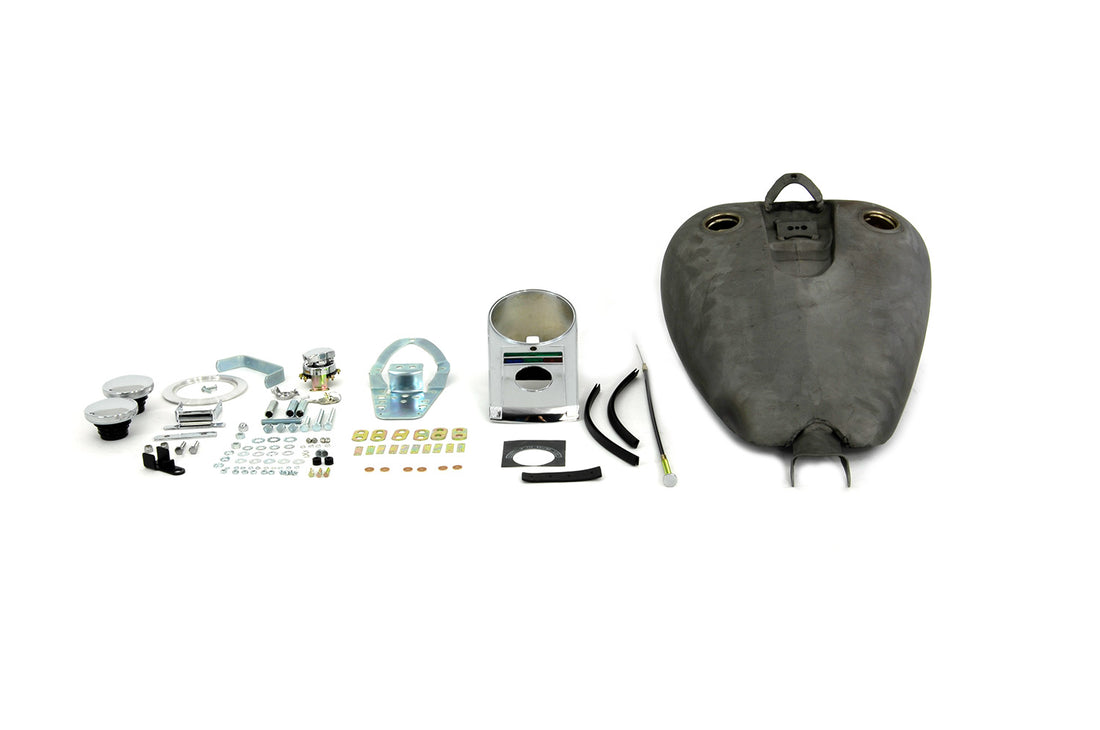

38-0191 - Bobbed 3.2 Gallon Gas Tank Kit
SKU 38-0191
Gas tank has a left side petcock opening and a fuel capacity of 3.2 gallons. Tank kit features a chrome cast dash kit which includes dash with lens 6 post switch choke cable and knob mounting hardware and trim strips chrome late style bung caps. and all necessary mounting hardware for installation. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit clear condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock should be masked or plugged during painting for easy installation of petcock. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 2004-2006 XL
MEASUREMENTS
- Top Length: 18-1/2 inches
- Bottom Length: 16-1/2 inches
- Rear Width: 7 inches
- Front Width: 13-1/2 inches
- Rear Height: 2 inches
- Front Height: 8-1/2 inches
- Front Tunnel Height: 8 inches
- Rear Tunnel Height: 2 inches
- Tunnel Length: 17 inches
ACCESSORIES
- 38-0065 - Porkster 3.2 Gallon Gas Tank
