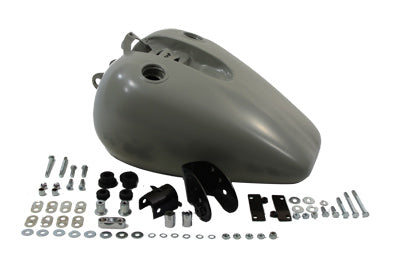

38-0094 - Bobbed 3.2 Gallon Gas Tank
SKU 38-0094
Gas tank has a left side petcock location and a fuel capacity of 3.2 gallons. Tank accepts two light three light or cast type dash kit. Check the tank for flaws and fit before painting. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will help to stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 1979-1981 XL
MEASUREMENTS
- Top Length: 18-1/2 inches
- Bottom Length: 17-1/2 inches
- Rear Width: 7-3/4 inches
- Front Width: 13-1/4 inches
- Rear Height: 1-1/4 inches
- Front Height: 8 inches
- Front Tunnel Height: 4-1/4 inches
- Rear Tunnel Height: 7/8 inches
- Tunnel Length: 17 inches
ACCESSORIES
REPLACEMENT
- 37-0400 - Chrome Spacers 5/16 inch x 3/4 inch x 1 inch
TECHNICAL SPECIFICATIONS
- Suggested to use with #41-0113 Kreem Gas Tank Combo Kit.
