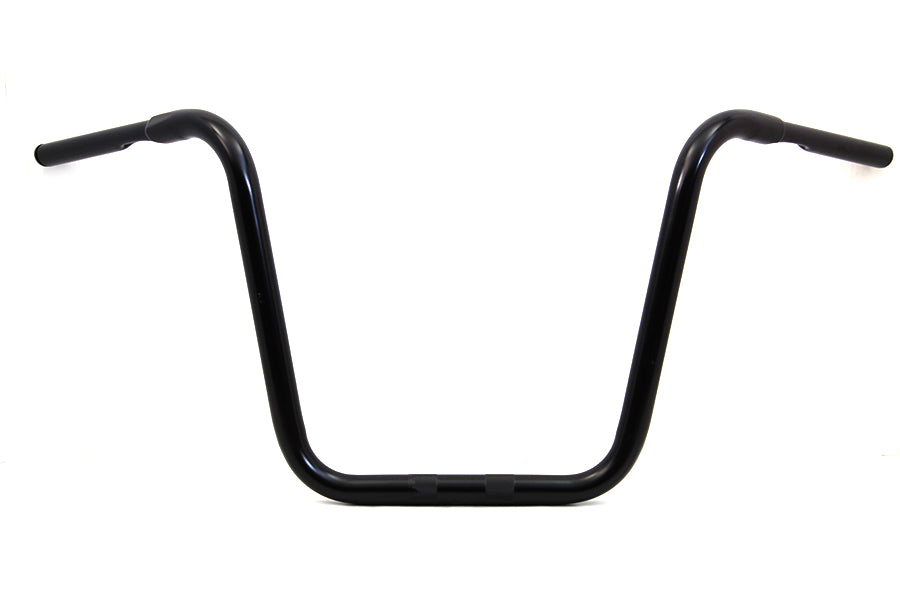

25-1301 - 15-1/2 Rhino Ape Hanger Handlebar with Indents Black

These black handlebars are full 1-1/4 inch outer diameter. Handlebars are 1-1/4 inch at riser area and require 1-1/4 inch inner diameter handlebar riser. These are drilled for internal wiring. Bars are indented at the grip area. The wire hole is located at the underside of the bar. *NOTE: For fitment application purchase 1-1/4 inch risers separately. Bars do not fit 2015-up FLTR Road Glide models. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher

MEASUREMENTS

• Rise To Grip Tip: 16 inches
• Rise To Center: 15-1/2 inches
• Pull Back: 15 inches
• Width Tip To Tip: 37 inches
• Knurl: 2 inches
• Bar Diameter: 1-1/4 inches
• Center Width: 12-1/2 inches
